SS & MS Series
Internally Mounted Tank Strainers

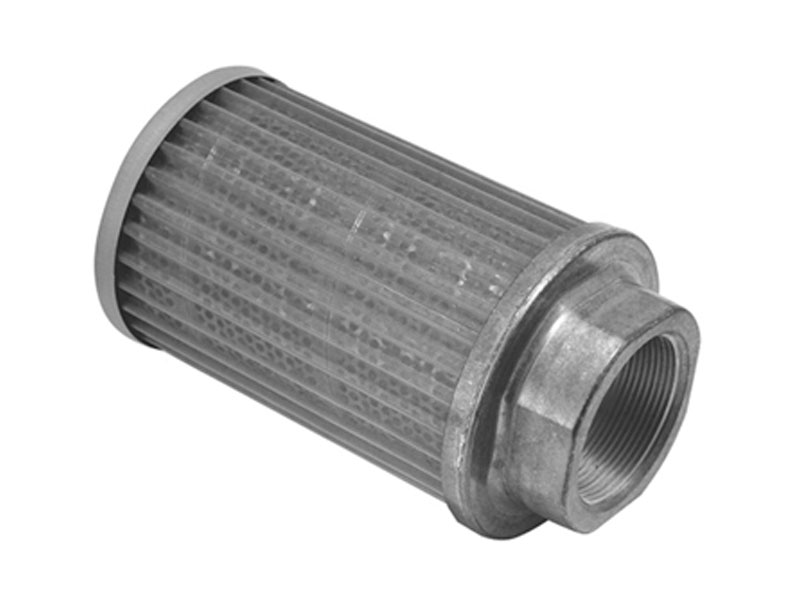

Zinga internally mounted tank strainers mount inside the hydraulic reservoir and extend the life of your equipment by protecting hydraulic pumps and control systems from solid contaminants, minimizing pressure loss for hydraulic pumps.
![](https://www.zinga.com/wp-content/uploads/2020/08/Internally-Mounted-Tank-Filter.jpg)
Features
- Port Sizes: 3/8″ Through 6″ NPTF
- Media: 100 Mesh Standard
- Optional By-pass: 3 PSI (6” Hg) or 5 PSI (10” Hg)
- Operating Temperature: Up to 250°F
Benefits
- Easy to install and use
- Extend the life of your equipment by protecting hydraulic pumps and control systems from solid contaminants, minimizing pressure loss for hydraulic pumps

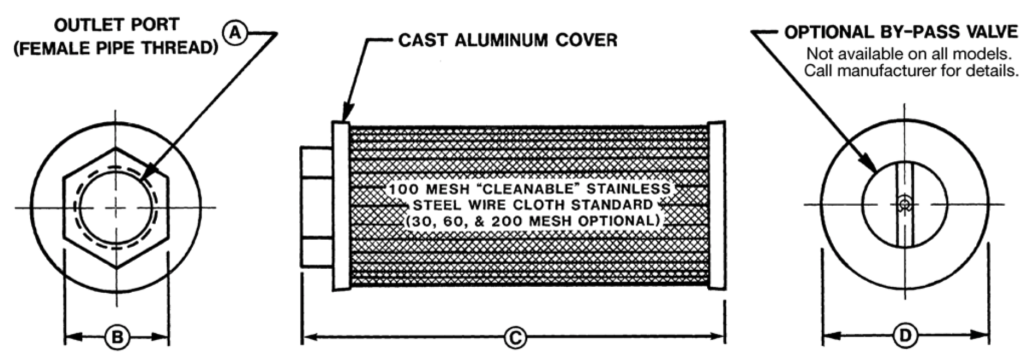

Specifications and Dimensions
Model | (A) Outlet Port | (B) Wrench Flat | (C) Overall Length | (D) OD | Rated Flow @ 5 Ft/Sec |
MS030X0* | 3/8″ NPTF | 1.2″ | 2.6″ | 1.1″ | 3 GPM |
SS030X0* | 3/8″ NPTF | 1.13″ | 2.2″ | 3.2″ | 3 GPM |
MS050X0* | 1/2″ NPTF | 1.2″ | 2.6″ | 1.1″ | 5 GPM |
SS050X0* | 1/2″ NPTF | 1.13″ | 2.2″ | 3.2″ | 5 GPM |
MS070XX* | 3/4″ NPTF | 1.5″ | 3.9″ | 1.5″ | 8 GPM |
SS070XX* | 3/4″ NPTF | 1.75″ | 3.6″ | 3.2″ | 8 GPM |
MS100XX* | 1″ NPTF | 1.75″ | 3.9″ | 1.7″ | 14 GPM |
SS100XX* | 1″ NPTF | 1.75″ | 4.6″ | 3.2″ | 14 GPM |
SS120XX* | 1 1/4″ NPTF | 2.25″ | 6.6″ | 3.2″ | 23 GPM |
SS150XX* | 1 1/2″ NPTF | 2.25″ | 8.6″ | 3.2″ | 32 GPM |
SS154XX* | 1 1/2″ NPTF | 2.25″ | 7.2″ | 4.2″ | 32 GPM |
SS200XX* | 2″ NPTF | 3.0″ | 7.2″ | 4.2″ | 53 GPM |
SS250XX* | 2 1/2″ NPTF | 3.5″ | 9.3″ | 4.2″ | 75 GPM |
SS300XX* | 3″ NPTF | 4.0″ | 12.4″ | 4.2″ | 116 GPM |
SS400XX* | 4″ NPT | NA | 20.1″ | 9.0″ | 200 GPM |
SS600XX* | 6″ NPT | NA | 20.1″ | 9.0″ | 450 GPM |
![](https://www.zinga.com/wp-content/uploads/2020/08/internally-mounted-tank-filter-dia-1024x363.png)

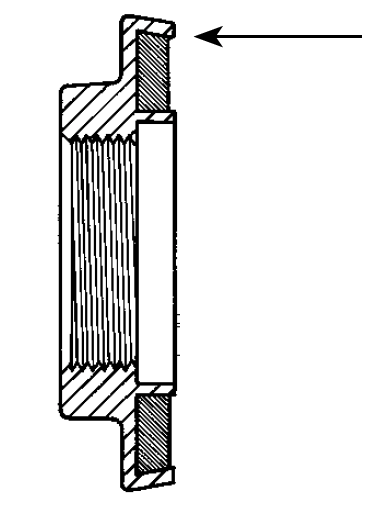

REVERSE TAPER
All Zinga series tank filter end caps have reverse taper wall construction. This feature prevents bond failure by ensuring a positive mechanical interlock with the epoxy adhesive. Excellent for rough-terrain vehicle applications.
![](https://www.zinga.com/wp-content/uploads/2020/08/reverse-taper.png)
