Pressure Filters

Slider

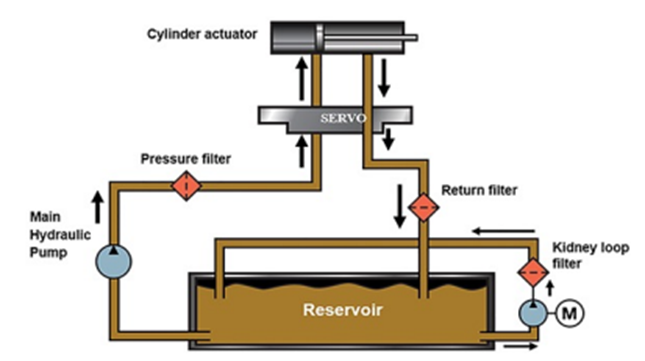

Zinga Pressure Filters provide in-line system protection with the use of a variety of cellulose, fiberglass and wire mesh media elements. Commonly used to protect sensitive system components like servo valves, pressure filters can be found in agriculture equipment, road machinery, utility and construction systems and industrial machinery. With product offerings meeting system pressures up to 6000 psi, Zinga provides an array of rugged system solutions.

  • Flows Up to: 12 GPM

  • Cavity: Common Cavity No. C16-2

  • Pressure: 3,000 PSI Max.

  • Temperature: Up to +250°F Operating

  • Applications: Petroleum-based fluids

  • Operating Pressure: 6,000 PSI

  • Flows Up To: 30 GPM

  • Media: 10-Micron Stainless Steel Mesh

  • Applications: Petroleum-based fluids

  • Port Size: 1/2″ NPTF, 3/4″ – 16 UN (SAE-8)

  • Pressure: 3,000 PSI

  • Flows Up To: 12 GPM

  • By-Pass Valve Setting: 50 PSI

  • Filtration: 10-Micron Stainless Steel Wire Cloth Standard

  • Flows Up To: 60 GPM

  • Ports Sizes: 1” NPTF; 1 1/16”-12 UN (SAE – 12); 1 5/16”-12 UN (SAE – 16)

  • Pressure: 3,000 PSI Max. Operating

  • Application: Inline Filtration, 90° Design Permits Element Replacement without Breaking Line

  • Flows Up To: 30 GPM (114 L/MIN)

  • Ports Size: 1 1/16”-12 UN (SAE – 12)

  • Pressure: 3,000 PSI (207 BAR)

  • Application: Inline Filtration, External Charge Pump Filtration, High-Shock Return Line Filtration

  • Flows Up To: 120 GPM (454 L/MIN)

  • Port Sizes: 1 1/4” & 1 1/2” NPTF; 1 5/8”-12UN (SAE-20); 1 7/8”-12UN (SAE-24)

  • Max. Operating Pressure: 1,200 PSI (83 BAR)

  • Application: Inline Filtration; High-Shock Return Line Filtration
