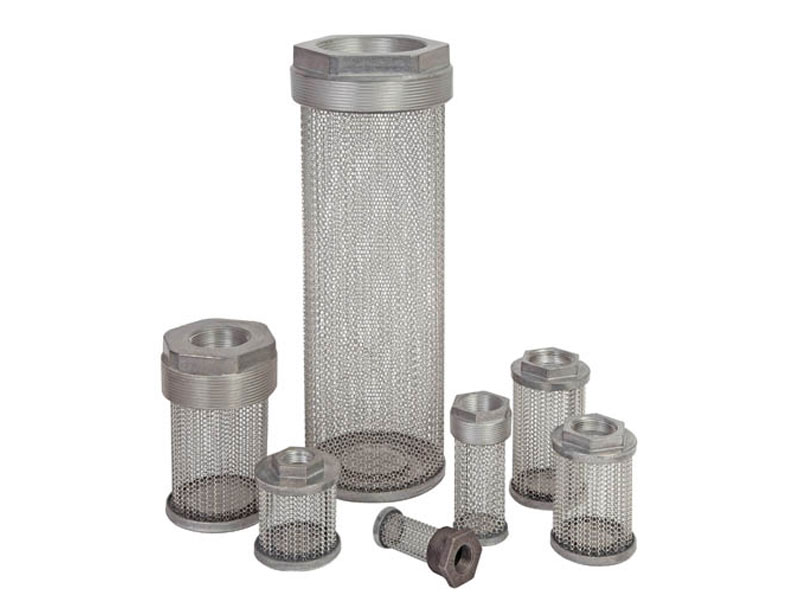

TD Series

Hydraulic Internally Mounted Tank Diffusers

Zinga Internally Mounted Tank Diffusers provide uniform dispersion and decreased velocity of return line hydraulic fluid into the reservoir. Tank inlet diffusers provide an effective means to reduce aeration, foaming, and turbulence, which, when introduced to the pump inlet, can shorten pump life. The diffuser assembly also protects the system from high-flow surge conditions.

REQUEST A QUOTE

Features

  • Port Sizes: 3/8″ Through 6″ NPTF
  • Operating Temperature: Up to 250°F
  • Mount: Internal Bushing Mount

Benefits

  • Protects the system from high-flow surge conditions
  • Reduces aeration, foaming, and turbulence
  • Easy to install and use

Specifications and Dimensions

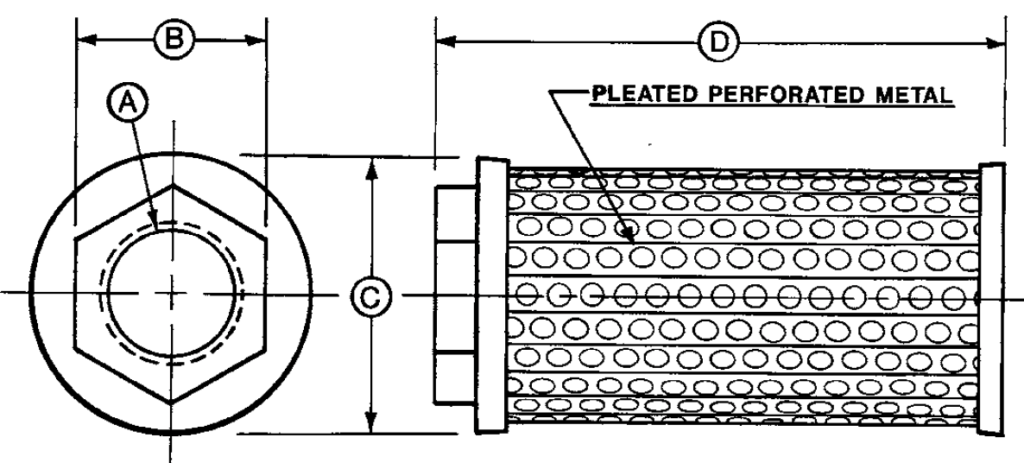

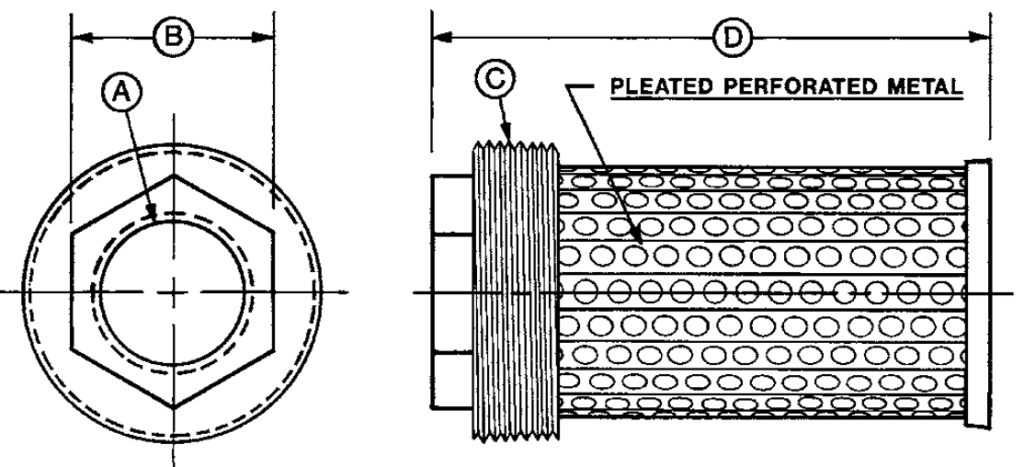

INTERNALLY MOUNTED PMI Series

Model Number(A) Inlet Port(B) Wrench Flat(C) Outside Dia.(D) Overall LengthRated Flow(At 15 Ft/Sec)Ratio of Perf Mtl OpenArea vs. Pipe Int Area
TD100PMI1″ NPTF1.75″3.2″3.6″40 GPM27 : 1
TD125PMI1 1/4″ NPTF2.25″3.2″4.6″70 GPM22 : 1
TD150PMI1 1/2″ NPTF2.25″3.2″5.6″95 GPM21 : 1
TD200PMI2″ NPTF3.0″4.2″6.2″157 GPM17 : 1

INTERNALLY MOUNTED PMI Series

Model Number(A) Inlet Port(B) Wrench Flat(C) Male Thread(D) Overall LengthRated Flow(At 15 Ft/Sec)Ratio of Perf Mtl OpenArea vs. Pipe Int Area
TD0310PME3/8″ NPTF1.2″1″ NPTF3.0″9 GPM25 : 1
TD0510PME1/2″ NPTF1.12″1″ NPTF4.0″9 GPM25 : 1
TD0712PME3/4″ NPTF1.5″1 1/4″ NPTF3.9″25 GPM18 : 1
TD1015PME1″ NPTF1.75″1 1/2″ NPTF4.9″40 GPM19 : 1
TD1030PME1″ NPTF2.5″3″ NPTF4.7″40 GPM31 : 1
TD1220PME1 1/4″ NPTF2.1″2″ NPTF5.1″70 GPM14 : 1
TD1230PME1 1/4″ NPTF2.5″3″ NPTF4.7″70 GPM18 : 1
TD1530PME1 1/2″ NPTF2.5″3″ NPTF5.7″95 GPM18 : 1
TD2040PME2″ NPTF4.1″4″ NPT6.8″157 GPM17 : 1
TD2540PME2 1/2″ NPTF4.1″4″ NPT10.8″224 GPM22 : 1
TD3040PME3″ NPTF4.1″4″ NPT10.8″346 GPM15 : 1
TD4060PME4″ NPTF5.8″6″ NPT17.5″595 GPM21 : 1
