SLF1 Series

Compact Tank Mounted Return Filter: 25 GPM, SAE-8 & SAE-12 Ports


Ideal for compact hydraulic systems and mobile equipment, this tank mounted return filter provides efficient contaminant removal with flows up to 25 GPM and SAE-8 or SAE-12 ports. Designed for tight spaces without sacrificing dirt-holding capacity, each filter is rated for 100 PSI and helps maintain fluid cleanliness to ISO 4406 standards—ensuring reliable protection for pumps and hydraulic circuits.

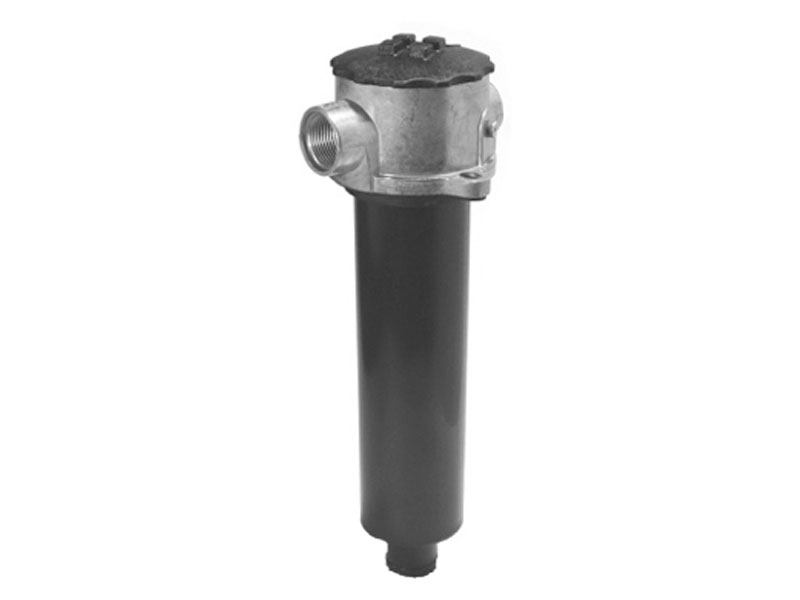

Compact tank mounted hydraulic return filter with 25 GPM flow and 1/2 inch port for small hydraulic systems

Specifications

  • Flows Up To: 25 GPM (Return)
  • Port Sizes: SAE-8 and SAE-12
  • Pressure: 100 PSI Max. Operating Pressure; 300 PSI Burst
  • Temperature: -15 to +230°F Operating
  • Head: Die-Cast Aluminum Alloy
  • Bowl / Cover: Nylon
  • Breather: 10-Micron (Foam) Standard
  • Applications: Petroleum-based fluids only; consult factory for synthetic fluids

Benefits

  • Protects hydraulic system
  • Easy to install and use
  • Helps keep your system in compliance with ISO 4406 standards
  • Highest levels of dirt-holding capacity

Diagrams and Dimensions

Zinga Filter Media Types

Z-Glass Media

Multi-Layered, non-woven glass media that provides the highest levels of depth filtration efficiency and capacity. Higher capacity means longer service life. Coupled with a steel support mesh, Z-Glass can withstand higher differential pressures.

Cellulose Media

Traditional paper based media that provides a nominal level of depth filtration and capacity. Used with petroleum-based fluids only. Some grades of cellulose include a layered glass fiber substrate to provide more efficiency.

AquaZorb Media

Water absorbing cellulose based media designed specifically to absorb and retain free water from petroleum-based fluids. Commonly used in offline systems, AquaZorb will operate until it is fully saturated and ultimately curtail flow through the media. A system by-pass valve and service gauge is recommended when using AquaZorb.

Stainless Steel Mesh

Woven in a variety of precision patterns, stainless steel mesh provides a basic surface type filtration with very low differential pressure. Applications include pump protection and “last chance” valve protection. Stainless steel mesh can be serviced by ultrasonic cleaning. (30: 560µ, 60: 280µ, 100: 141µ, 200:75µ, 200×1400: 10µ)

Compatible Filter Elements

SLE1 & ZSLE1 Series Filter Elements, Cellulose and Synthetic
For use with Zinga SLF1 series tank-top filters
