P3000 Series

High Pressure In-Line Pressure Filter: 3000 PSI, 30 GPM


The P3000 Series in-line hydraulic pressure filter offers superior protection for circuits requiring up to 3000 PSI operating pressure and 30 GPM flow. Engineered for compactness and durability, this filter is the perfect choice for severe-duty, mobile, or industrial applications where reliability and system safety are paramount.

High pressure in-line hydraulic pressure filter with 3000 PSI rating and 30 GPM flow for compact and severe-duty hydraulic systems

Specifications

  • Flows Up To: 30 GPM (114 L/MIN)
  • Ports Size: 1 1/16”-12 UN (SAE – 12)
  • Pressure: 3,000 PSI (207 BAR)
  • Application: Inline Filtration, External Charge Pump Filtration, High-Shock Return Line Filtration

Benefits

  • In-line system protection
  • Easy to install and use

Additional Specs

Code NumberRemoval Rating
03H (Z-Glass)B<4μ(c) = 200      B<4μ(c) = 1000
03L (Z-Glass)B<4μ(c) = 200      B<4μ(c) = 1000
06L (Z-Glass)B5μ(c) = 200      B6μ(c) = 1000
10L (Z-Glass)B8μ(c) = 200      B10μ(c) = 1000
10H (Z-Glass)B8μ(c) = 200      B10μ(c) = 1000
20L (Z-Glass)B19μ(c) = 200      B23μ(c) = 1000
10C (Cellulose)B5μ(c) = 2

REFERENCE
Bxμ(c) Rating of 1000 = 99.9% Efficiency
Bxμ(c) Rating of 200 = 99.5% Efficiency
Bxμ(c) Rating of 2 = 50.0% Efficiency

PRESSURE RATING
Maximum Operating: 3,000 PSI (207 Bar)
Burst Pressure: 8,600 PSI (580 Bar)
Rated Fatigue Pressure: 0-3000-0 PSI for 1,000,000 Cycles

TEMPERATURE RANGE
Operating: -40°F to +250°F (-40°C to +120°C)

BY-PASS SETTING:
No By-Pass or 50 PSID

∆P INDICATOR OPTIONS
Visual, Single-Wire DC Electrical, or Electrical/Visual w/ DIN Connector

FLUID COMPATIBILITY
Elements: Suitable For Use with Petroleum-Base Fluids. Contact Us For Use With Other Fluids.

MATERIALS
Head: Die-Cast Aluminum
Bowl: Anodized Aluminum (6061-T6)
By-Pass: Nylon
Element Hardware: Plated Carbon Steel Endcaps and Core. Epoxy Endcap Adhesive.
Filter Media: Z-Glass Fiber Standard

WEIGHT
P3000G04: 4.2 lbs. (2.2 Kg)
P3000G08: 5.2 lbs. (2.8 Kg)

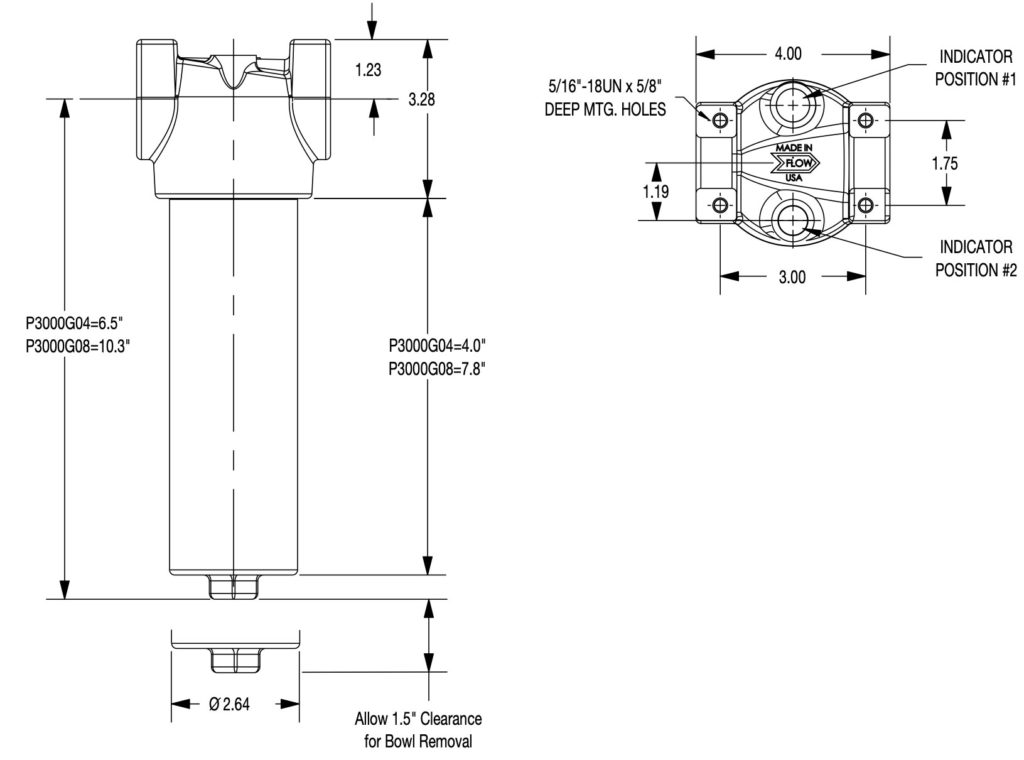

Diagram

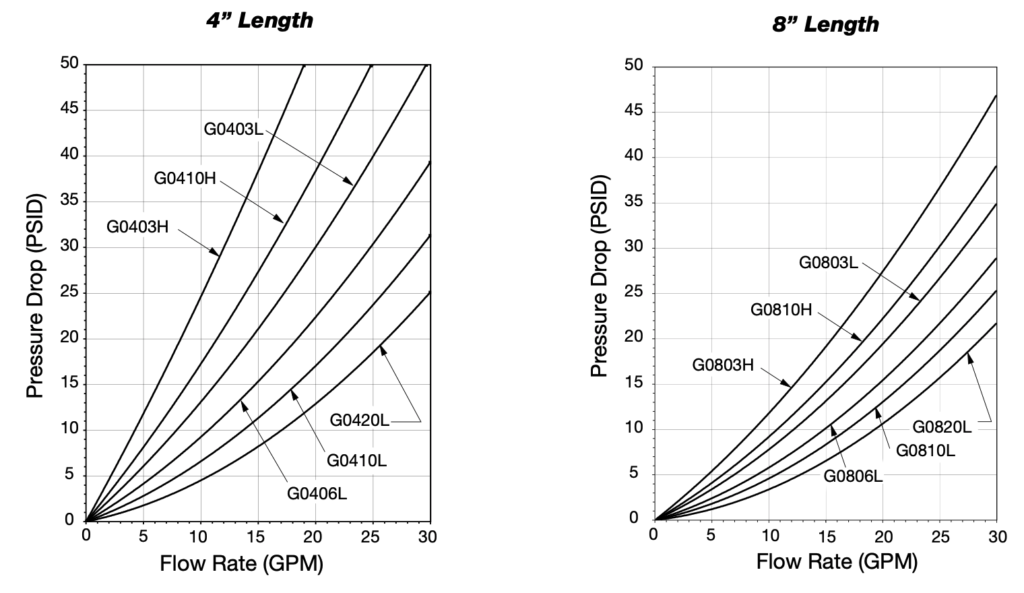

P3000 PRESSURE DROP CURVES

Fluid Viscosity 150 SUS at 105°F (33 CS at 41°C)
