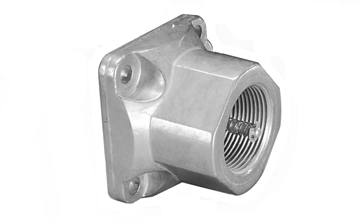

RV Series Return Line Check Valves

Tank-Mounted Return Line Check Valves


Zinga tank-mounted return line check valves are available in different sizes giving options for implementing our products into your hydraulic system. These RV Series Return Line Check Valves have a maximum operating pressure of 50 PSI.

Features

  • Operating Pressure: Maximum 50 PSI
  • Standard Valve Setting: 1/2 PSI
  • Port Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″, 3″ NPTF & SAE-12 up to SAE-24

Benefits

  • Easy to use
  • Mounts directly to tanks
  • Available in different sizes

Dimensions

Part Number(A) Inlet Port
RV071013/4″ NPTF
RV101011″ NPTF
RV121011 1/4″ NPTF
RV151011 1/2″ NPTF
RV301013″ NPTF

Diagrams

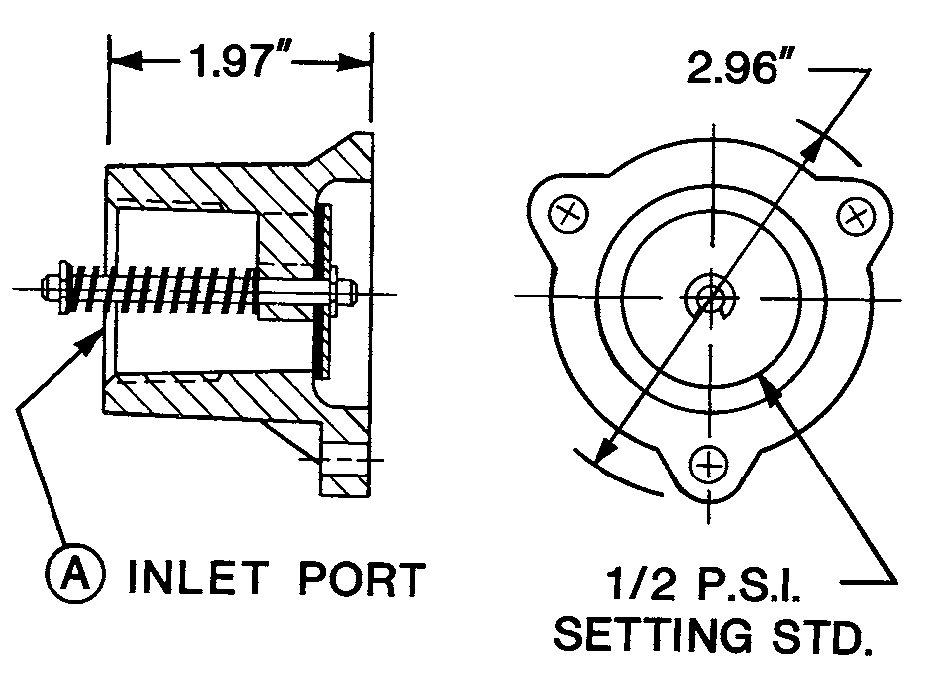

Part Numbers: RV-07-1-01 & RV-10-1-01

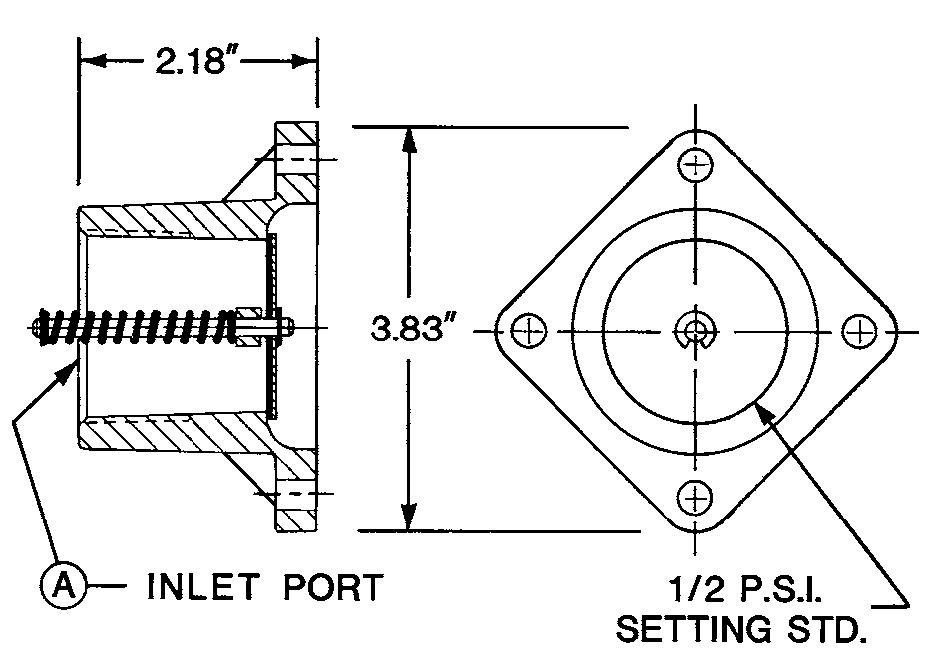

Part Numbers: RV-12-1-01 & RV-15-1-01

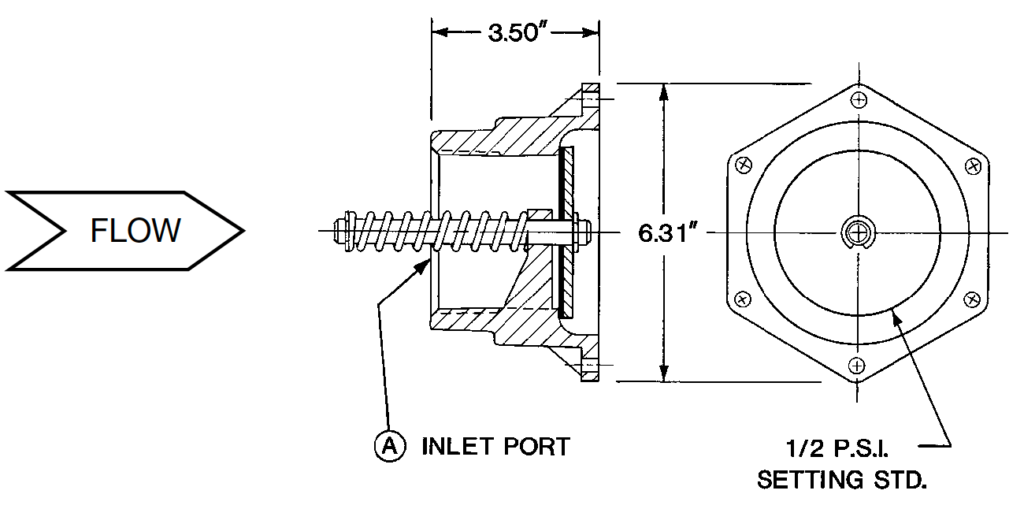

Part Number: RV-30-1-01

NOTE: Buna-N seals standard, Fluorocarbon seals optional
