LRV Series Check Valves

Heat Exchanger / Cross Port Relief Valves


Zinga Heat Exchanger / Cross Port Relief Valves are available in three sizes to fit in your application. These LRV Series Check Valves can handle up to 500 PSI.

Features

  • Check Valves: In Line
  • Settings: 2, 6, 20, 40 & 60 PSI
  • Port Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″, 3″ NPTF & SAE-12 up to SAE-24

Benefits

  • Easy to use
  • Designed for heat exchangers
  • Available in different sizes

Dimensions and Diagrams

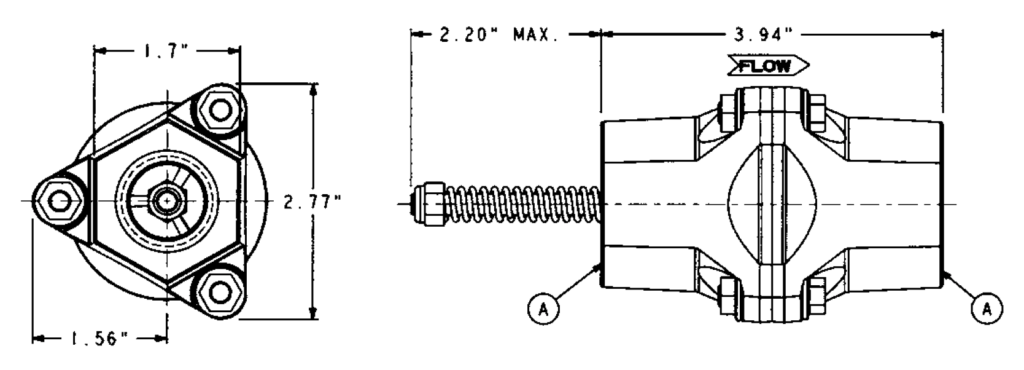

Part Numbers: LRV-07 and 10 (500 PSI Max)

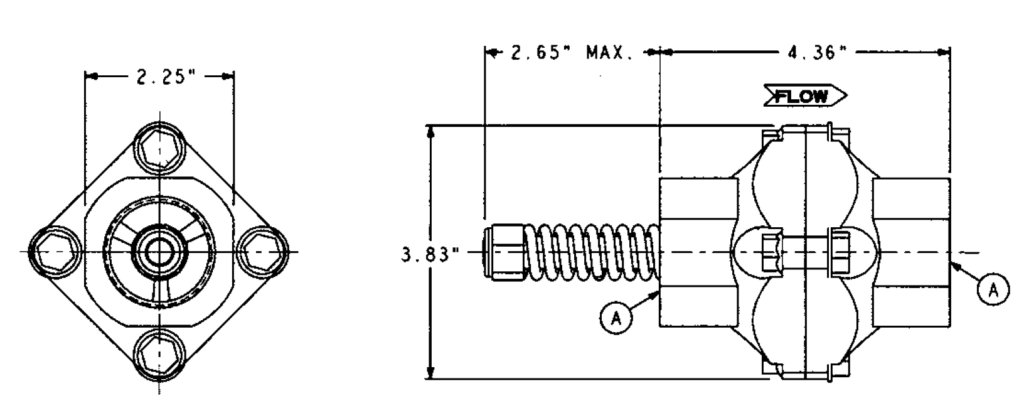

Part Numbers: LRV-12 and 15 (500 PSI Max)

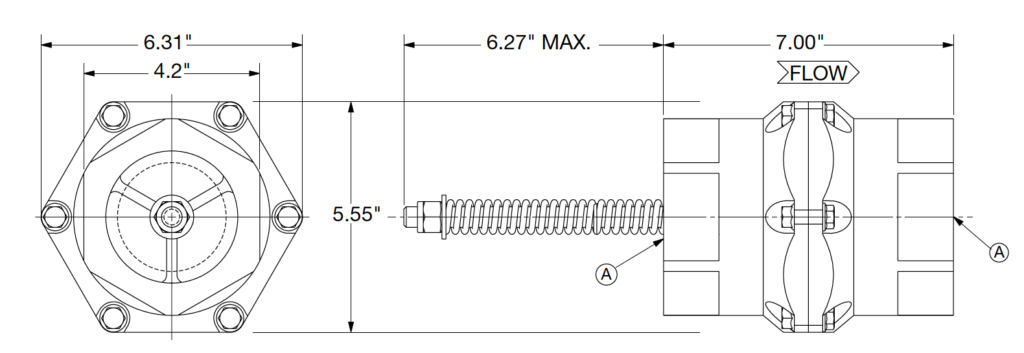

Part Numbers: LRV-30 (300 PSI Max)

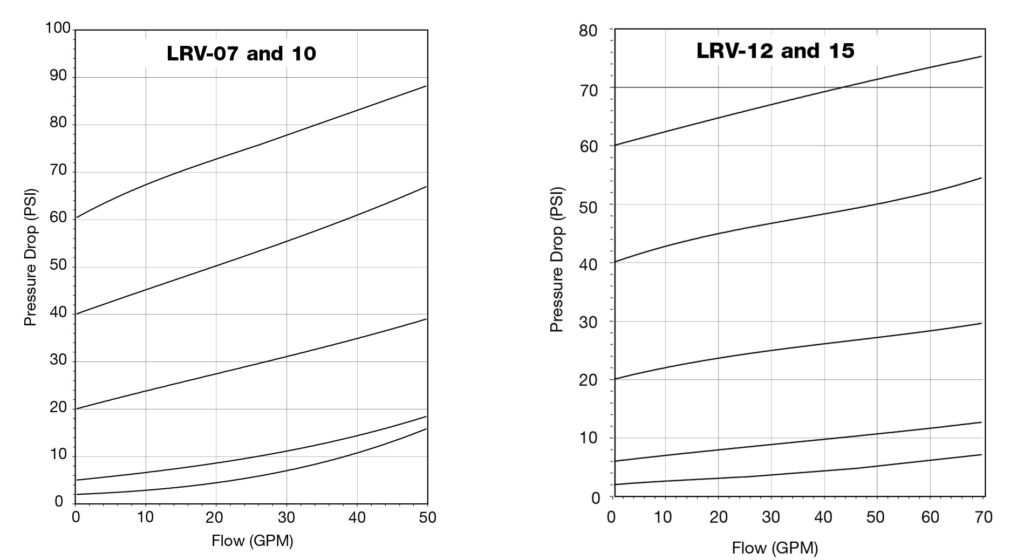

Performance Charts

Average Pressure Drop with 150 SUS Oil at 100˚ F.
