SLE2 & ZSLE2
Cellulose and Synthetic Filter Elements for Zinga SLF2 Tank-Top Filters
Zinga cellulose and synthetic filter elements keep fluids clean and are in available in a variety of different options. Zinga filter elements protect your system from dirt and debris by removing them from liquids immediately.
Features
- Cellulose & Z-Glass Media
- 3, 10 & 25 Micron
- 2.5″ OD x 11.7″ L
- Buna-N Seals
- Built In By-Pass Valve
- FOR USE WITH SLF2 SERIES TANK-TOP FILTERS
Benefits
- Easy to install and use
- Removes dirt and debris from liquids
- keeps fluids and system clean

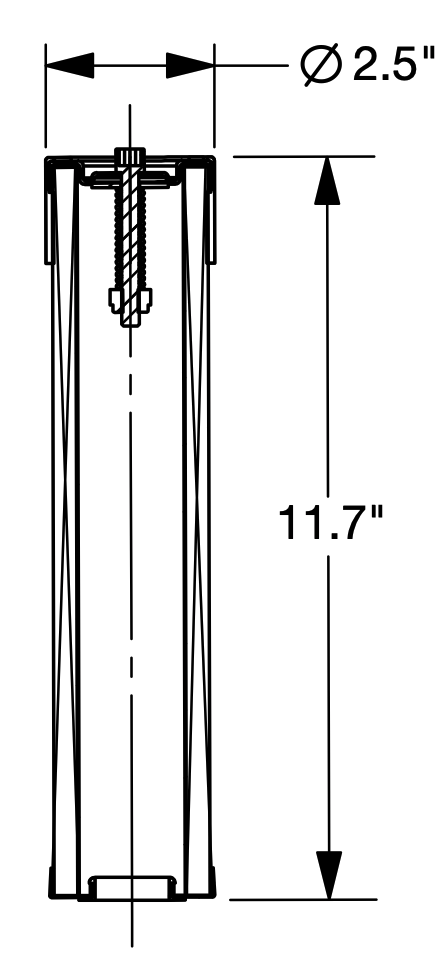

Specifications and Dimensions
| Code | Media Type | Nominal Rating | Absolute Rating |
| SLE203 | Cellulose | ß<4μ(c) = 2 | ß11μ(c) = 75 |
| SLE210 | Cellulose | ß<5μ(c) = 2 | ß19μ(c) = 75 |
| SLE225 | Cellulose | ß<19μ(c) = 2 | ß36μ(c) = 75 |
| ZSLE203 | Z-Glass | ß<4μ(c) = 2 | ß4μ(c) = 75 |
| ZSLE210 | Z-Glass | ß<4μ(c) = 2 | ß10μ(c) = 75 |
Performance Charts
Average pressure drop through clean assembly with 150 SUS oil at 105° F
Zinga Filter Media Types
Z-Glass Media
Multi-Layered, non-woven glass media that provides the highest levels of depth filtration efficiency and capacity. Higher capacity means longer service life. Coupled with a steel support mesh, Z-Glass can withstand higher differential pressures.
Cellulose Media
Traditional paper based media that provides a nominal level of depth filtration and capacity. Used with petroleum-based fluids only. Some grades of cellulose include a layered glass fiber substrate to provide more efficiency.
AquaZorb Media
Water absorbing cellulose based media designed specifically to absorb and retain free water from petroleum-based fluids. Commonly used in offline systems, AquaZorb will operate until it is fully saturated and ultimately curtail flow through the media. A system by-pass valve and service gauge is recommended when using AquaZorb.
Stainless Steel Mesh
Woven in a variety of precision patterns, stainless steel mesh provides a basic surface type filtration with very low differential pressure. Applications include pump protection and “last chance” valve protection. Stainless steel mesh can be serviced by ultrasonic cleaning. (30: 560µ, 60: 280µ, 100: 141µ, 200:75µ, 200×1400: 10µ)
Compatible Tank-Top Mounted Filters
SLF1 Series Tank-Top Filters (with Integral Tank Breather)
Flows Up To: 25 GPM (Return)
Port Sizes: 1/2″ & 3/4″ NPTF, SAE & BSP
Pressure: 100 PSI Max. Operating Pressure; 300 PSI Burst
Temperature: -15 to +230°F Operating
