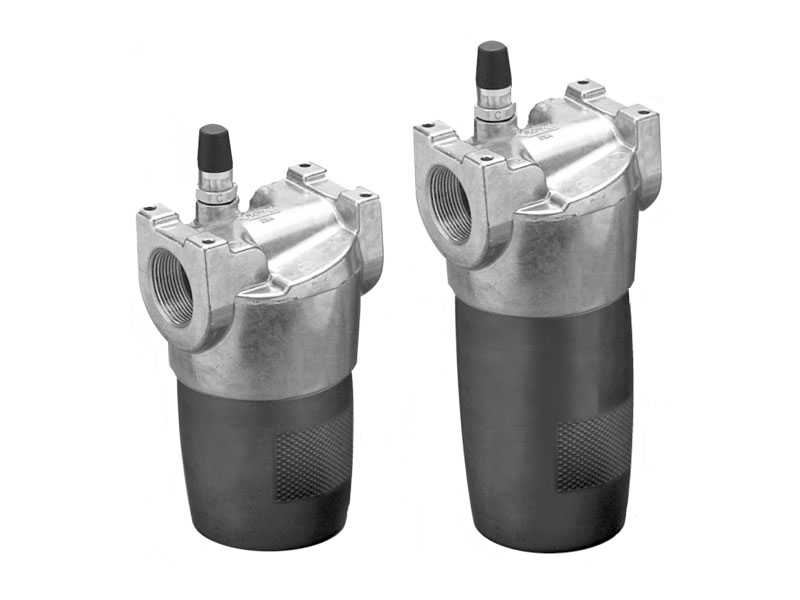

W1200 Series
In-Line Pressure Filters with ∆P Indicator
Zinga pressure filters provide in-line system protection for sensitive system components like servo valves, pressure filters can be found in agriculture equipment, road machinery, utility and construction systems and industrial machinery.
Specifications
- Flows Up To: 120 GPM (454 L/MIN)
- Port Sizes: 1 1/4” & 1 1/2” NPTF; 1 5/8”-12UN (SAE-20); 1 7/8”-12UN (SAE-24)
- Max. Operating Pressure: 1,200 PSI (83 BAR)
- Application: Inline Filtration; High-Shock Return Line Filtration
Benefits
- In-line system protection
- Easy to install and use
Additional Specs
| Code Number | Removal Rating |
| 03H (Z-Glass) | B<4μ(c) = 200 B<4μ(c) = 1000 |
| 03L (Z-Glass) | B<4μ(c) = 200 B<4μ(c) = 1000 |
| 06L (Z-Glass) | B5μ(c) = 200 B6μ(c) = 1000 |
| 10L (Z-Glass) | B8μ(c) = 200 B10μ(c) = 1000 |
| 10H (Z-Glass) | B8μ(c) = 200 B10μ(c) = 1000 |
| 20L (Z-Glass) | B19μ(c) = 200 B23μ(c) = 1000 |
REFERENCE
Bxμ(c) Rating of 1000 = 99.9% Efficiency
Bxμ(c) Rating of 200 = 99.5% Efficiency
PRESSURE RATING
Maximum Operating: 1,200 PSI (83 Bar)
Burst Pressure: 3,000 PSI (206 Bar)
Rated Fatigue Pressure: 0-1000-0 PSI for 1,000,000 Cycles
TEMPERATURE RANGE
Operating: -40°F to +250°F (-40°C to +120°C)
BY-PASS SETTING:
No By-Pass or 50 PSID
∆P INDICATOR OPTIONS
Visual, Single-Wire DC Electrical, or Electrical/Visual w/ DIN Connector
FLUID COMPATIBILITY
Elements: Suitable For Use with Petroleum-Base Fluids. Contact Us For Use With Other Fluids.
MATERIALS
Head: Die-Cast Aluminum
Bowl: Anodized Die-Cast Aluminum
By-Pass: Nylon
Element Hardware: Plated Carbon Steel Endcaps and Core. Epoxy Endcap Adhesive.
Filter Media: Z-Glass Fiber Standard
WEIGHT
W1200W04: 6.6 lbs. (3 Kg)
W1200W08: 8.8 lbs. (4 Kg)
Diagram
W1200 PRESSURE DROP CURVES
Fluid Viscosity 150 SUS at 105°F (33 CS at 41°C)
