HC Series

Hose Clamps Severe Service “T” Bolt Type


Zinga HC series hose clamps are available in a variety of clamping ranges. Our clamps are constructed using .025″ thick stainless steel on the clamping mechanism and a self-locking hex nut.

Features

  • T-Bolt Type Hose Clamps
  • Self-Locking Nut
  • 1.19” to 4.81” Clamping Ranges

Benefits

  • Easy to use
  • customizable to your specific needs

Specifications

Hose Clamp Part NumberMinimum Clamping RangeMaximum Clamping RangeRecommended Clamps per Hose End
HC0751.19″1.37″One
HC1001.38″1.56″One
HC1251.63″1.88″One
HC1381.81″2.12″One
HC1501.94″2.19″One
HC1872.19″2.44″One
HC2002.38″2.69″One
HC2382.81″3.12″One
HC2502.94″3.25″Two
HC3003.50″3.81″Two
HC4004.50″4.81″Two

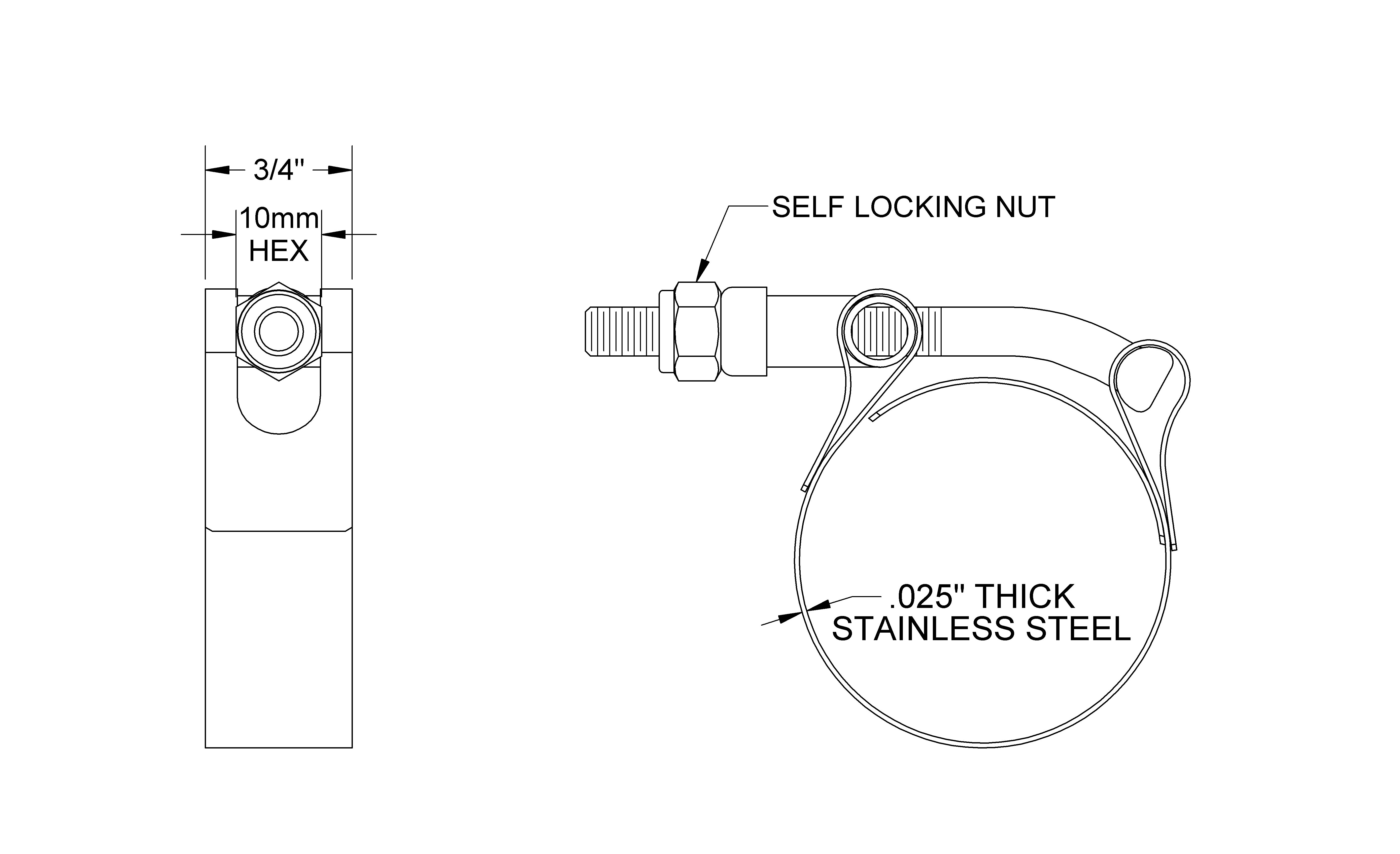

Diagram
