C16 Series

Cartridge Filters


Zinga pressure filters provide in-line system protection for sensitive system components like servo valves, pressure filters can be found in agriculture equipment, road machinery, utility and construction systems and industrial machinery.

Specifications

  • Flows Up to: 12 GPM
  • Cavity: Common Cavity No. C16-2
  • Pressure: 3,000 PSI Max.
  • Temperature: Up to +250°F Operating
  • Applications: Petroleum-based fluids

Benefits

  • In-line system protection
  • Easy to install and use

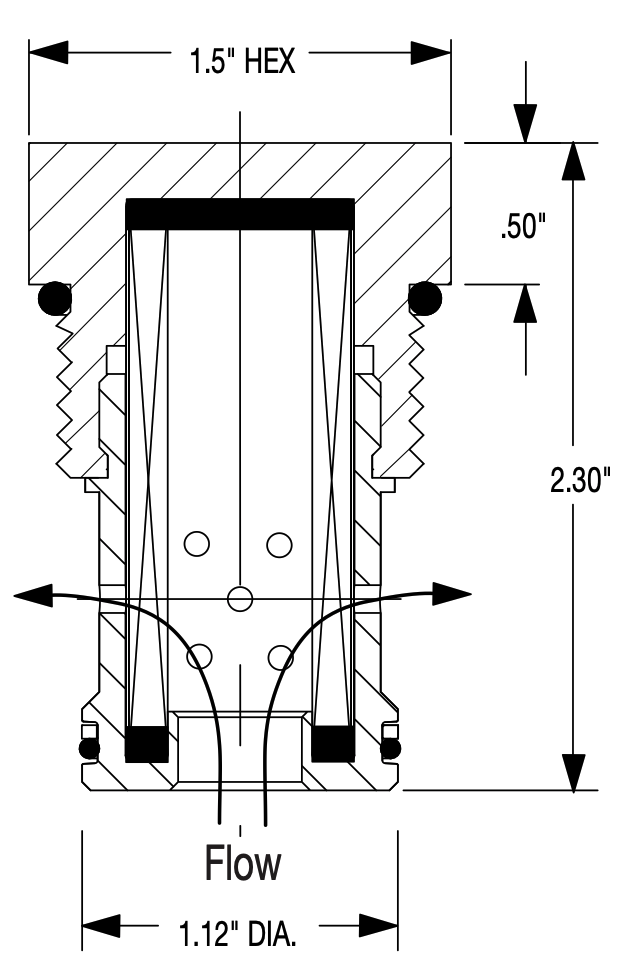

Diagram and Dimensions

Sized to fit Common Cavity No. C16-2

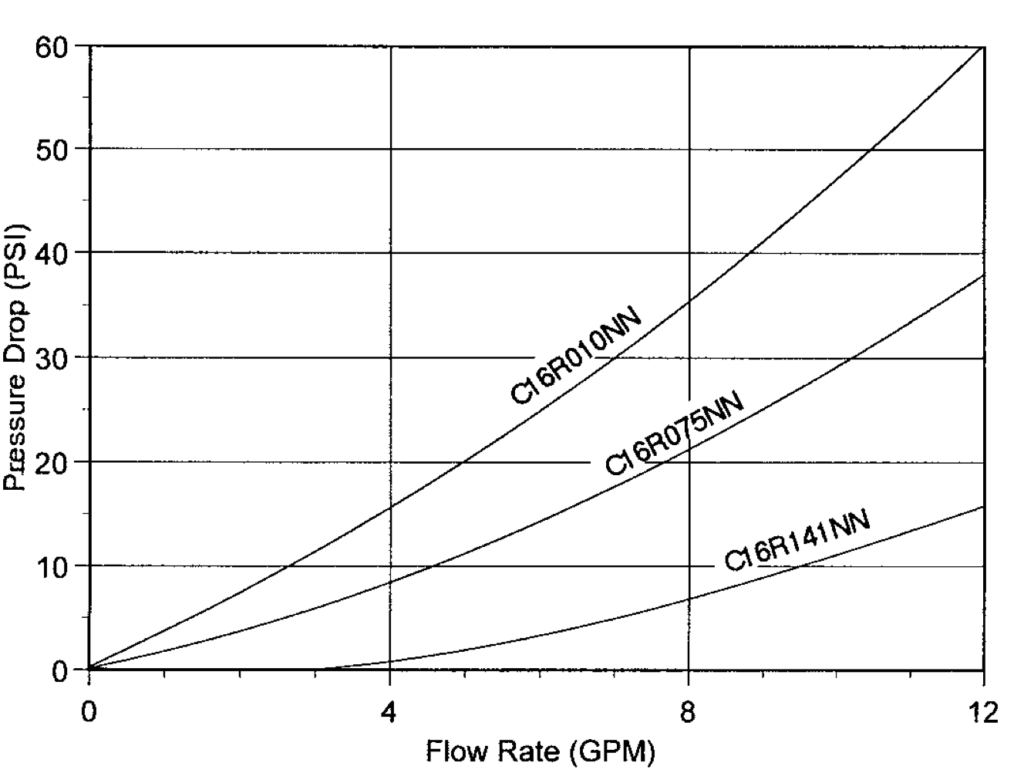

Performance Chart

Average Pressure Drop Through Clean Filter Assembly With 150 SUS At 105° F
