CF-90 Series
In-Line High-Pressure Filter
Zinga pressure filters provide in-line system protection for sensitive system components like servo valves, pressure filters can be found in agriculture equipment, road machinery, utility and construction systems and industrial machinery.
Specifications
- Port Size: 1/2″ NPTF, 3/4″ – 16 UN (SAE-8)
- Pressure: 3,000 PSI
- Flows Up To: 12 GPM
- By-Pass Valve Setting: 50 PSI
- Filtration: 10-Micron Stainless Steel Wire Cloth Standard
Benefits
- In-line system protection
- Easy to install and use

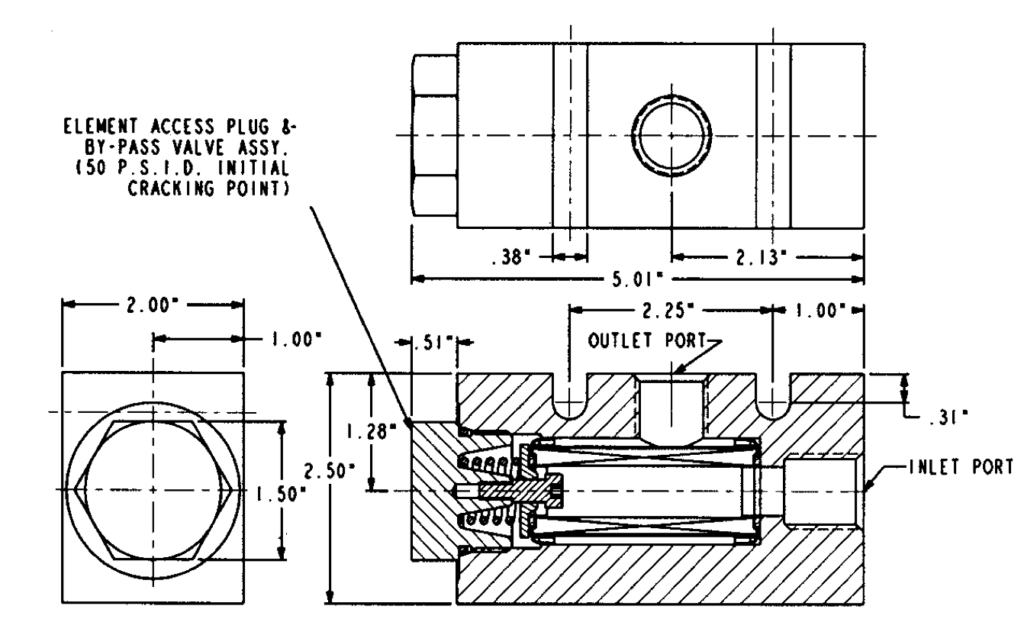

Diagram and Dimensions

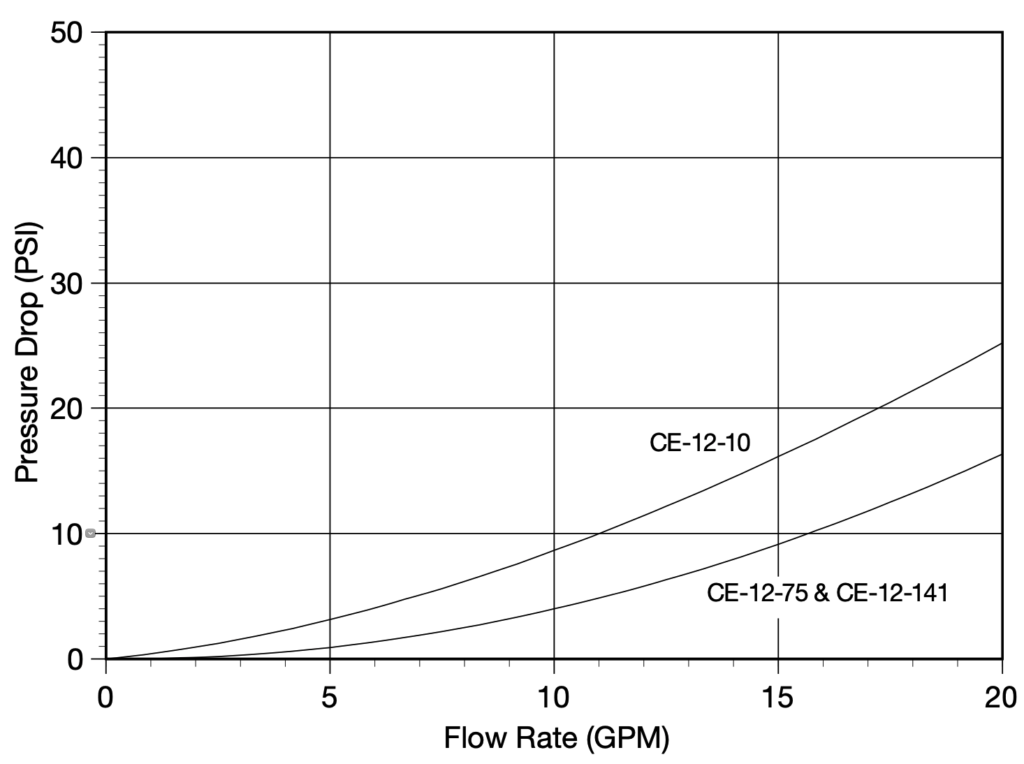

Performance Chart

Avg. pressure drop with 150 SUS oil at 105 ̊ F.
Note:
CE-Series filter elements are compatible with petroleumbase fluids, water glycol, diesel fuel, & gaso- line (except if containing alcohol). For fluids not listed, consult factory.
Element access plug uses a Buna-N O-ring as standard (for use with petroleum-base fluids). Fluorocarbon O-ring optional (for use with synthetic fluids).
