HP3000 Series
In-Line Pressure Filters with ∆P Indicator
Zinga pressure filters provide in-line system protection for sensitive system components like servo valves, pressure filters can be found in agriculture equipment, road machinery, utility and construction systems and industrial machinery.
Specifications
- Flows Up To: 60 GPM
- Ports Sizes: 1” NPTF; 1 1/16”-12 UN (SAE – 12); 1 5/16”-12 UN (SAE – 16)
- Pressure: 3,000 PSI Max. Operating
- Application: Inline Filtration, 90° Design Permits Element Replacement without Breaking Line
Benefits
- In-line system protection
- Easy to install and use
Additional Specs
| Code Number | Removal Rating |
| 03Z (Z-Glass) | B<4μ(c) = 200 B7μ(c) = 1000 |
| 10Z (Z-Glass) | B10μ(c) = 200 B12μ(c) = 1000 |
| 003 (Cellulose) | B<4μ(c) = 2 |
| 010 (Cellulose) | B5μ(c) = 2 |
| 025 (Cellulose) | B19μ(c) = 2 |
REFERENCE
Bxμ(c) Rating of 1000 = 99.9% Efficiency
Bxμ(c) Rating of 200 = 99.5% Efficiency
Bxμ(c) Rating of 2 = 50.0% Efficiency
PRESSURE RATING
Maximum Operating: 3,000 PSI (207 Bar)
Burst Pressure: 15,000 PSI (1034 Bar) Rated Fatigue
Pressure: 0-3000-0 PSI for 1,000,000 Cycles
TEMPERATURE RANGE
Operating: -40°F to +250°F (-40°C to +120°C)
BY-PASS SETTING:
50 PSID
∆P INDICATOR OPTIONS
Visual, Single-Wire DC Electrical, or Electrical/Visual w/ DIN Connector
FLUID COMPATIBILITY
Elements: Suitable For Use with Petroleum-Base Fluids. Consult Factory For Use With Other Fluids.
MATERIALS
Housing: Ductile Iron
By-Pass: Steel
Element Hardware: Plated Carbon, Steel Endcaps and Core., Epoxy Endcap Adhesive.
Filter Media: Z-Glass Fiber, Cellulose Stainless Steel Mesh
WEIGHT
4.2 lbs. (2.2 Kg)

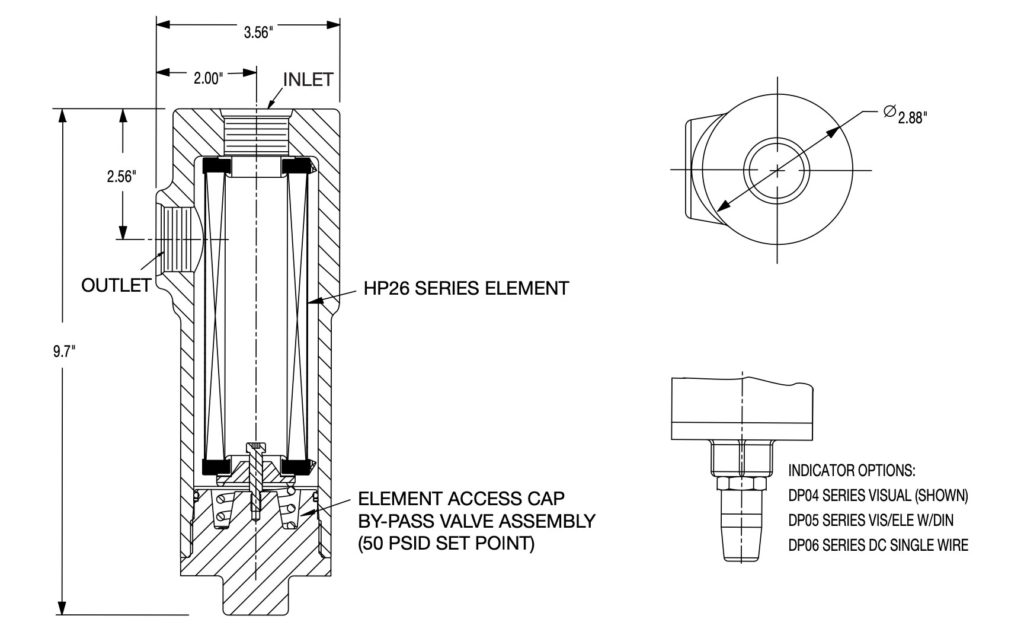

Diagram
Performance Chart
Average pressure drop through clean filter with 150 SUS oil at 105 ̊ F.

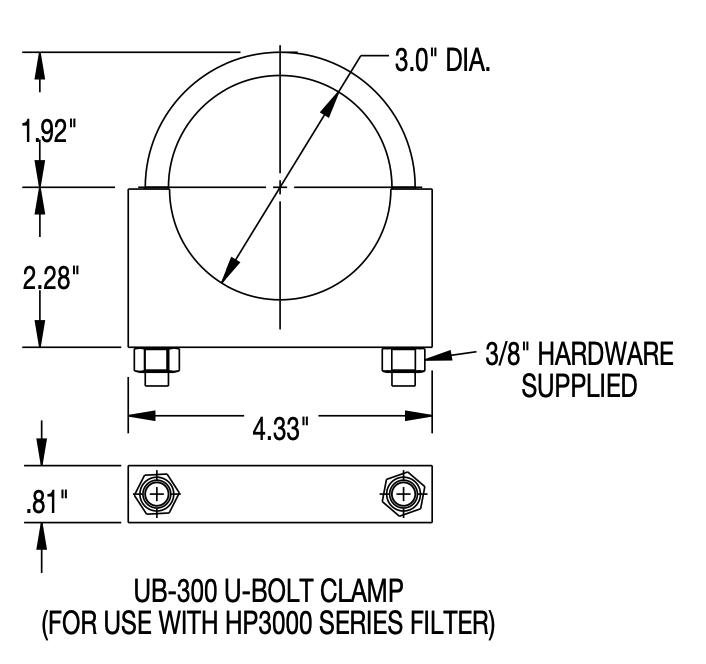

Accessories
