FT Series
Filter Tank Adapters
Zinga filter tank adapters are available in a variety of lengths, thread options, and hose diameters. Our adapters come standard with a zinc plated finish but also can be made with a back pipe finish.
Features
- Male NPT to Hose Barb Adapters
- Steel with Zinc Plate Finish Standard
- Options for black pipe finish
- 1/2” to 4” NPT
Benefits
- Enables a variety of applications to connect to a filter tank
- Easy to use
- customizable to your specific needs
Specifications
| Part Number | (A) Male Thread | (B) Hose ID | (C) Barb Length | (D) Overall Length |
| FT0505ZP | 1/2″ NPT | 1/2″ | 1.35″ | 3.44″ |
| FT0507ZP | 1/2″ NPT | 3/4″ | 1.35″ | 2.94″ |
| FT0707ZP | 3/4″ NPT | 3/4″ | 1.35″ | 3.12″ |
| FT0710ZP | 3/4″ NPT | 1″ | 1.35″ | 2.94″ |
| FT1007ZP | 1” NPT | 3/4” | 1.35” | 4.12” |
| FT1010ZP | 1″ NPT | 1″ | 1.35″ | 3.38″ |
| FT1012ZP | 1″ NPT | 1-1/4″ | 1.65″ | 3.44″ |
| FT1212ZP | 1 1/4″ NPT | 1-1/4″ | 1.65″ | 3.88″ |
| FT1215ZP | 1 1/4″ NPT | 1-1/2″ | 1.65″ | 3.58″ |
| FT1515ZP | 1 1/2″ NPT | 1-1/2″ | 1.75″ | 3.88″ |
| FT1520ZP | 1 1/2″ NPT | 2″ | 2.20″ | 4.50″ |
| FT2015ZP | 2” NPT | 1-1/2” | 1.75” | 5.42” |
| FT2020ZP | 2″ NPT | 2″ | 2.20″ | 4.50″ |
| FT2025ZP | 2″ NPT | 2-1/2″ | 2.40″ | 5.00″ |
| FT2525ZP | 2 1/2″ NPT | 2-1/2″ | 2.40″ | 5.50″ |
| FT2520ZP | 2 1/2″ NPT | 2″ | 2.20″ | 6.13″ |
| FT2530ZP | 2 1/2″ NPT | 3″ | 3.00″ | 6.13″ |
| FT3030ZP | 3″ NPT | 3″ | 3.00″ | 6.00″ |
| FT3025ZP | 3″ NPT | 2-1/2″ | 2.40″ | 7.13″ |
| FT4040ZP | 4″ NPT | 4″ | 3.80″ | 7.25″ |
Diagram
Related Products

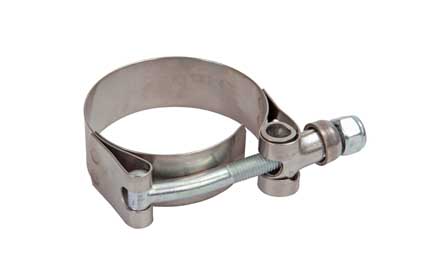

Hose Clamps Severe Service “T” Bolt Type
