Rebuildable Stainless Steel Power Breathers


Protects lubricants and equipment from moisture and particulate intrusion. Extends service cycles and equipment life in high-flow applications.

304 SS Construction

priced below competitors carbon steel units. TTI believes carbon steel should be eliminated in high humidity environments.

20% More Microglass Media

equating to more dirt holding capacity.

20% More Moisture Holding

capacity for the Power Breather Gel compared to competitors and proven in head-to-head trials.

Fully Compatible

with DES-CASE rebuildable breathers.

The TTI Rebuildable Power Breather offers the ability to remove both particulate and moisture in high-flow and extreme humidity environments.

While in service, the Power Breather eliminates moisture and particulate intrusion into the system. During shutdown, the Power Breather silica gel attracts moisture by actively drying the system.


Rebuild Kit

Replacement Filter Cartridge
Pleated microglass filter cartridge captures airborne contaminants to 1 micron absolute.

Desiccant Bag Filter
Polypropylene bag has handles for easy removal and replacement.

Sight Glass Indicator
Silica gel changes color from blue to pink when the unit requires rebuilding.

Note: Rebuild kit also includes lid gasket, sight glass gasket and oil dispersing foam pad.

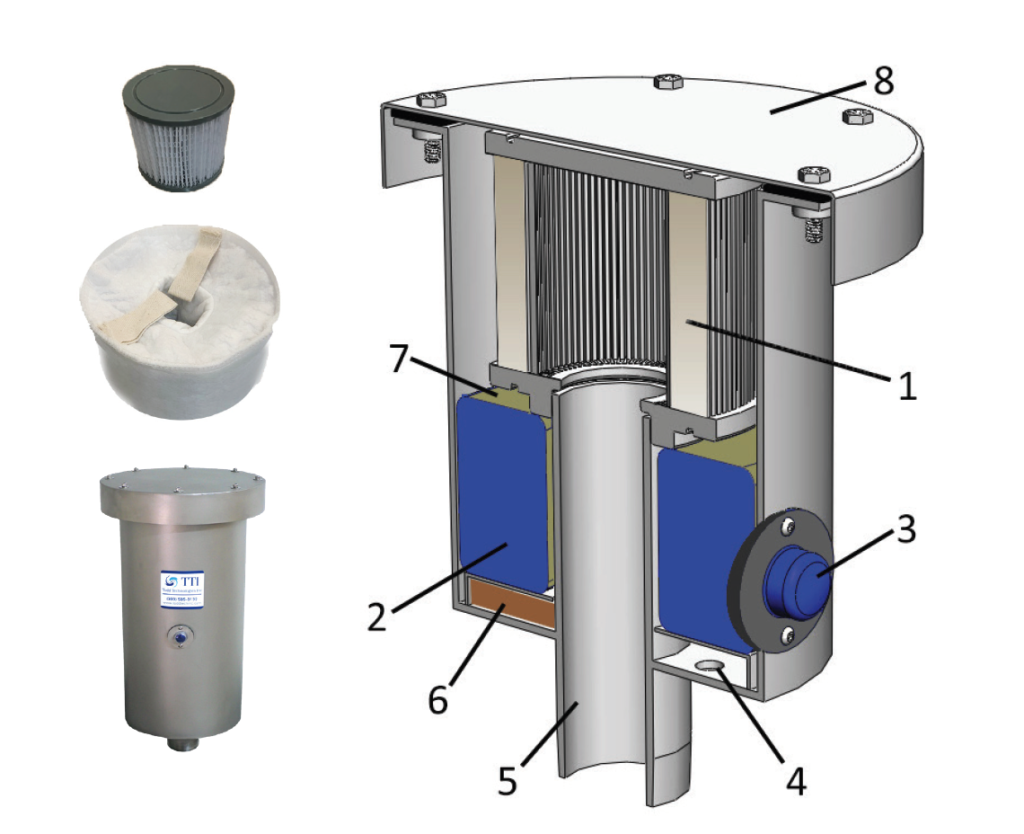

Rebuildable Breather Components

1-Pleated Filter Cartridge
Pleated microglass filter cartridge captures airborne contaminants to 1 micron absolute.

2-Desiccant
Silica gel strips moisture from incoming air.

3-Sight Glass Indicator
Silica gel changes color from blue to pink when the unit requires rebuilding.

4-Air Vents
Removable stickers keep breather inactive until installation.

5-Integrated Standpipe
Open-flow construction provides negligible resistance to air flow and allows oil mist to coalesce and drain back into the reservoir.

6-Foam Pad
Polymeric foam filter pad captures large particulate, attracts and absorbs oil, and disperses incoming air evenly across the filter cartridge and desiccant media.

7-Easy to Replace Desiccant Bag
Polypropylene bag has handles for easy removal.

8-Rugged Housing
Robust 304 SS construction eliminates chance of corrosion in high humidity environments.


Dimensions

ModelHeight
inches/cm
Width
inches/cm
Approx. Dry Weight
lbs/kg
Amount of Desiccant
lbs/kg
Max Absorption Capacity
gal/L
Max. Air Flow Rate
cfm
Oper. Temp.Connect Size
TT-RS-311.5/29.210.1/25.716/7.263/1.360.14/0.5485 @ 0.5psid-20-220°F/
-29-104°C
2”
TT-RS-513.75/34.910.1/25.720/9.075/2.270.24/0.985 @ 0.5psid-20-220°F/
-29-104°C
2”
TT-RS-918.25/45.410.1/25.727/12.259/4.080.43/1.6280 @ 0.5psid-20-220°F/
-29-104°C
2”
TT-RS-1519.25/48.915.5/39.449/22.2315/6.800.71/2.7205 @ 0.5psid-20-220°F/
-29-104°C
3”
TT-RS-2522.5/57.115.5/39.464/29.0325/11.341.19/4.5140 @ 0.5psid-20-220°F/
-29-104°C
3”
TT-RS-5031.25/79.415.5/39.4100/45.3650/22.682.38/9115 @ 0.5psid-20-220°F/
-29-104°C
3”
TT-RS-7539.75/10115.5/39.4144/65.3275/34.023.57/13.580@ 0.5psid-20-220°F/
-29-104°C
3”

Rebuild Parts and Accessories

ModelDescription
TT-RS* RKRebuildable Stainless Steel Breather Kits
TT-RS* F1Rebuildable Stainless Steel Breather Microglass Filter Cartridge
TT-RS* D1Rebuildable Stainless Steel Desiccant Bag
TT-RS* SG1Rebuildable Stainless Steel Breather Sight Glass
TT-RS* P1Rebuildable Stainless Steel Breather Foam Pad Insert
TT-RS* G1Rebuildable Stainless Steel Breather Gasket Seals

NOTE: For part codes containing an (*), substitute the appropriate RS model number.
(Example: the part code for a rebuildable stainless steel breather kit for the TT-RS-75 would be TT-RS-75-RK.)

TTI recommends use of a pressure relief valve on any tank or storage system.

Materials

Housing: 304 Stainless Steel
Moisture Absorbing Media: Silica Gel
Filter Media: Microglass, Polyurethane
Gasket/Seal: Buna-N
