RF & WF Series

Tank Mounted Return Filter: Up to 96 GPM, High Pressure 500 PSI Design


The RF & WF Series tank mounted return filters offer robust filtration for demanding hydraulic systems, featuring flow rates up to 96 GPM and pressure ratings up to 500 PSI. Choose between multiple port sizes and benefit from heavy-duty construction designed for both moderate and high-pressure requirements. Combining outstanding dirt-holding capacity with easy installation, this series is perfect for a wide range of industrial and high-performance mobile equipment.

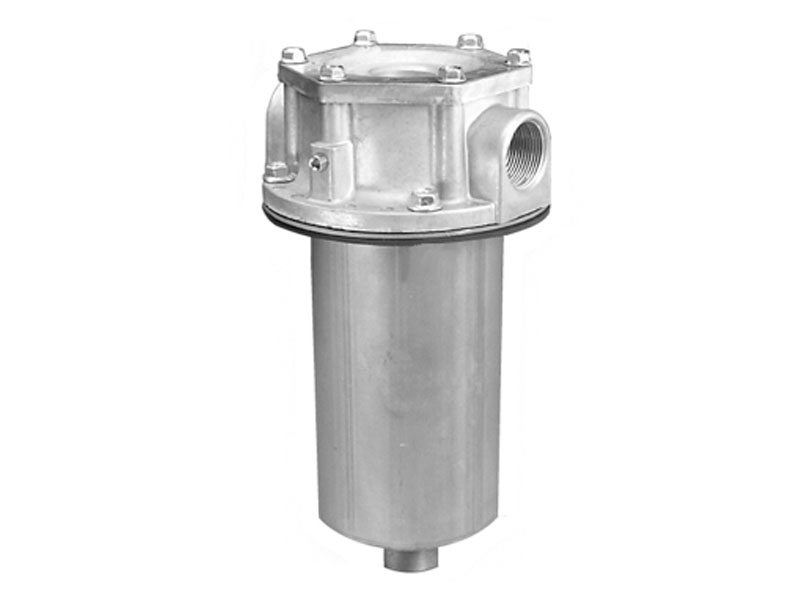

Tank mounted hydraulic return filter with up to 96 GPM flow and high pressure rating of 500 PSI, suitable for rugged industrial and mobile applications

Specifications

  • Flows Up To: 96 GPM (Return) 32 GPM (Suction)
  • Port Sizes: 1 ¼” NPTF, 1 ½” NPTF,  SAE-20, and SAE-24
  • Max. Operating Pressure: RF – 100 PSI, WF – 500 PSI
  • Temperature: Up to 250°F Operating
  • Application: Petroleum-based fluids only, consult factory for synthetic fluids

Benefits

  • Protects hydraulic system
  • Easy to install and use
  • Helps keep your system in compliance with ISO 4406 standards
  • Highest levels of dirt-holding capacity

Diagrams and Dimensions

5 3/8″ DIA. MOUNTING HOLE REQUIRED

Bottom Flow Filter Application

Bottom Port Options

Zinga Filter Media Types

Z-Glass Media

Multi-Layered, non-woven glass media that provides the highest levels of depth filtration efficiency and capacity. Higher capacity means longer service life. Coupled with a steel support mesh, Z-Glass can withstand higher differential pressures.

Cellulose Media

Traditional paper based media that provides a nominal level of depth filtration and capacity. Used with petroleum-based fluids only. Some grades of cellulose include a layered glass fiber substrate to provide more efficiency.

AquaZorb Media

Water absorbing cellulose based media designed specifically to absorb and retain free water from petroleum-based fluids. Commonly used in offline systems, AquaZorb will operate until it is fully saturated and ultimately curtail flow through the media. A system by-pass valve and service gauge is recommended when using AquaZorb.

Stainless Steel Mesh

Woven in a variety of precision patterns, stainless steel mesh provides a basic surface type filtration with very low differential pressure. Applications include pump protection and “last chance” valve protection. Stainless steel mesh can be serviced by ultrasonic cleaning. (30: 560µ, 60: 280µ, 100: 141µ, 200:75µ, 200×1400: 10µ)

Compatible Filter Elements

RE & ZRE Series Filter Elements
for Zinga RF, WF and TR Series Tank-Top Filters
