G Series
Synthetic Z-Glass Pressure Filter Element
Zinga Pressure Filter Elements are used as process filters for hydraulic and lubricating oil filtration to protect valves and hydraulic system components from contamination.
Specifications
- Media: Zinga Synthetic Z-Glass Media
- Application: P3000 Series Pressure Filters
- Temperature: Nitrile Seals -45°F to +225°F; Fluorocarbon Seals -20°F to +275°F
Benefits
- Protects hydraulic system valves and hydraulic system components from contamination
- Easy to install and use
150 PSID Rated Elements
For Use in Filters with By-pass Valve Only
| ZINGA P/N | BXμ(c) = 200 | BXμ(c) = 1000 | PALL P/N |
| G0403LN | <4 Micron | <4 Micron | HC9024FDP4H |
| G0406LN | 5 Micron | 6 Micron | HC9024FDN4H |
| G0410LN | 8 Micron | 10 Micron | HC9024FDS4H |
| G0420LN | 19 Micron | 23 Micron | HC9024FDT4H |
| G0803LN | <4 Micron | <4 Micron | HC9024FDP8H |
| G0806LN | 5 Micron | 6 Micron | HC9024FDN8H |
| G0810LN | 8 Micron | 10 Micron | HC9024FDS8H |
| G0820LN | 19 Micron | 23 Micron | HC9024FDT4H |
Buna-N Seals Standard. Replace “N” in P/N with “V” for Fluorocarbon.
3000 PSID Rated Elements
| ZINGA P/N | BXμ(c) = 200 | BXμ(c) = 1000 | PALL P/N |
| G0403HN | <4 Micron | <4 Micron | HC9021FUP4H |
| G0410HN | 8 Micron | 10 Micron | HC9021FUS4H |
| G0803HN | <4 Micron | <4 Micron | HC9021FUP8H |
| G0810HN | 8 Micron | 10 Micron | HC9021FUS8H |
Buna-N Seals Standard. Replace “N” in P/N with “V” for Fluorocarbon.

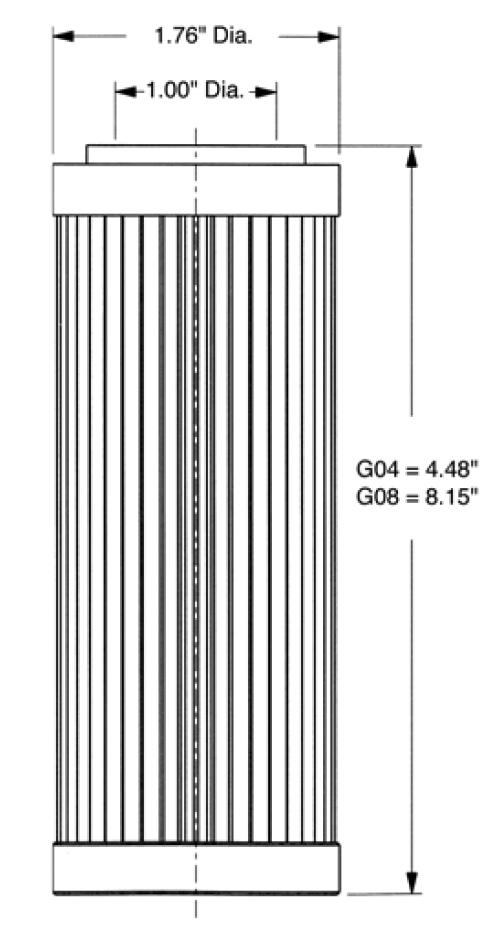

Diagram and Dimensions

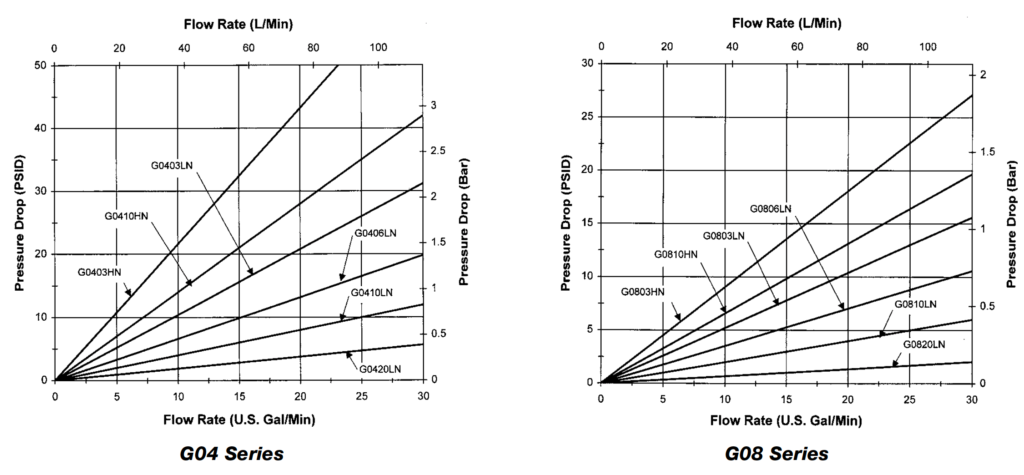

Performance Chart
Average Pressure Drop Through Clean Element With 150 SUS Oil At 100˚ F (32 cSt at 40° C)
Zinga Filter Media Types
Z-Glass Media
Multi-Layered, non-woven glass media that provides the highest levels of depth filtration efficiency and capacity. Higher capacity means longer service life. Coupled with a steel support mesh, Z-Glass can withstand higher differential pressures.
Cellulose Media
Traditional paper based media that provides a nominal level of depth filtration and capacity. Used with petroleum-based fluids only. Some grades of cellulose include a layered glass fiber substrate to provide more efficiency.
AquaZorb Media
Water absorbing cellulose based media designed specifically to absorb and retain free water from petroleum-based fluids. Commonly used in offline systems, AquaZorb will operate until it is fully saturated and ultimately curtail flow through the media. A system by-pass valve and service gauge is recommended when using AquaZorb.
Stainless Steel Mesh
Woven in a variety of precision patterns, stainless steel mesh provides a basic surface type filtration with very low differential pressure. Applications include pump protection and “last chance” valve protection. Stainless steel mesh can be serviced by ultrasonic cleaning. (30: 560µ, 60: 280µ, 100: 141µ, 200:75µ, 200×1400: 10µ)
