TB Series

Tank Breathers

Zinga tank breathers allow you to convert spin-on elements to a tank breather with an adapter fitting. See the information below for standard adapter and spin on element options or contact our team for other customization possibilities.

REQUEST A QUOTE

Features

BE & AE Spin-On Series Steel Adapter Fittings
Convert Spin-On Element to Tank Breather
3/4” to 1 1/4” NPT Male Mount

Benefits

Easy to install and use
configurable for your application

Specifications

Adapter Number	(A) Mount Thread	(B) Spin-On Thread	(C) Adapter Length	Spin-On Series	(D) Assy Height	(E) Element Diameter	Air Filtration@ 99%Efficiency	* MaximumAir Flow scfm / gpm
TB050	1/2” NPT	3/4”-16 UNF	1.6”	BE10	5.2”	3.1”	2 micron	8 / 60
TB075	3/4” NPT	1”-12 UNF	2.0”	AE03 AE10 AE10L	7.3” 7.3” 10.6”	3.7”	1 micron 2 micron 2 micron	14 / 104 13 / 97 14 / 104

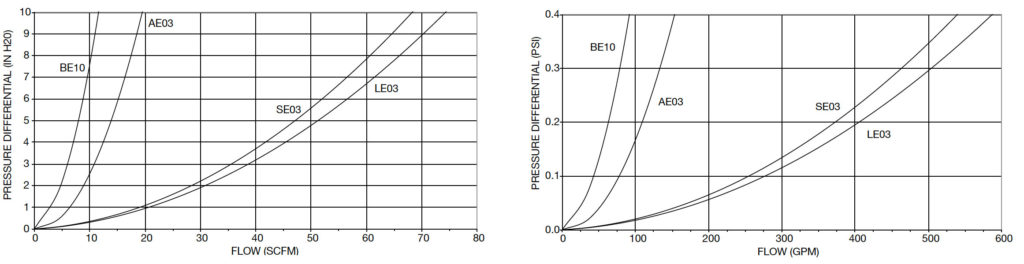

* Based on maximum pressure drop of 5 Inches H2O (0.18 PSID) through clean filter element

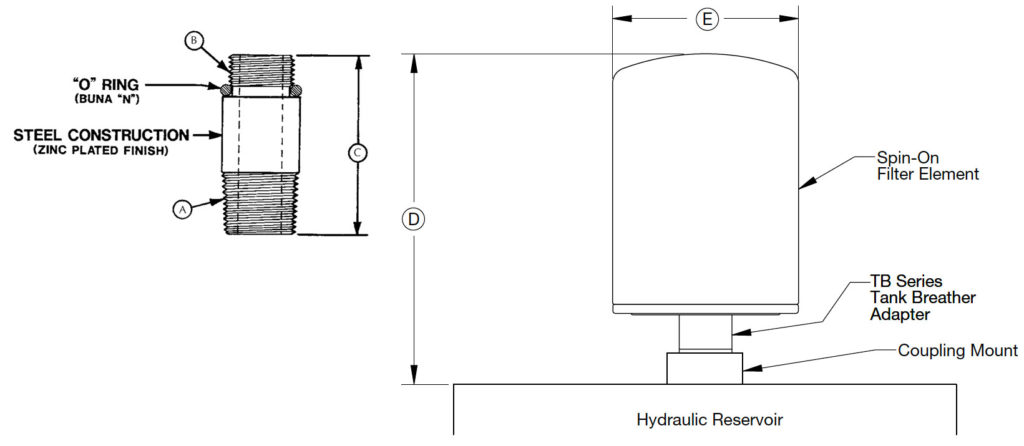

Diagram

Note: Spin-on filters with anti-drain back valves should not be used for breather applications. Zinga standard spin-on filters do NOT have anti-drain back valves.
