TTI

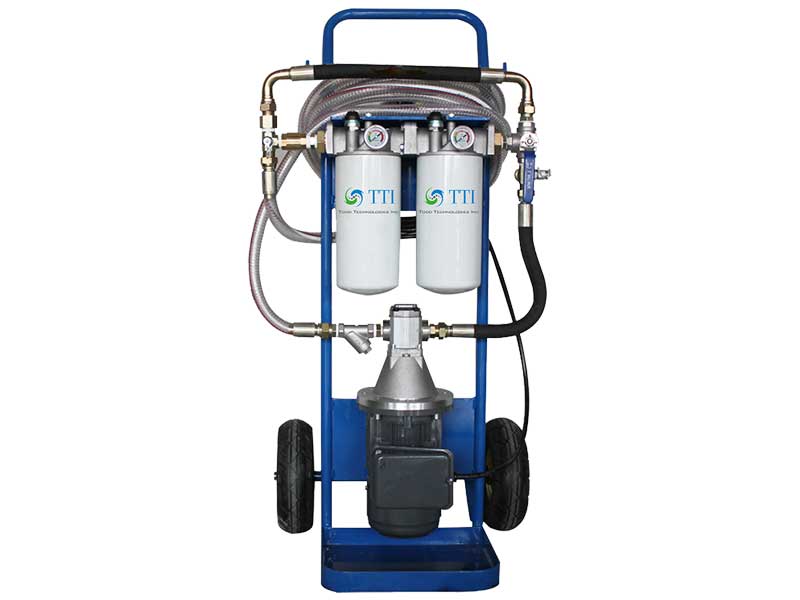

Portable Filter Cart
A portable filtration solution for decontaminating systems and transferring oils.
Filter Applications
- Clean-up of contaminated systems
- Treatment of new or repaired systems
- Pre-filtration of new oil
- Directly transfer oil without exposing it to contaminants
Construction Materials
- Frame: Carbon steel
- Filter Heads: Aluminum
- Fittings: Zinc plated steel, stainless steel, brass
- Pumps: Aluminum, steel
- Hoses: Clear PVC with steel wire
- Gaskets: Buna-N
Standard Features
- Dial pressure gauges
- Pop-up filter replacement indicators
- Manual filter bypass
- Minimess® sample valve
- Y Strainer
- UL listed motor, and electricals
- 1” and 3/4” hoses
Filter Indicators
- Filter indicator pops at 20 psid/1.5 bar to notify the filters need to be replaced
Pump Relief
- Opens at 65psi/4.14 bar
Customizable Features
- Fluid flow rate (2GPM, 5GPM, 10GPM)
- Hose connectors (ISO-A, ISO-B, MNPT)
- Filters (3μm, 6μm, 12μm, 25μm, Water Removal)
Weight
- Approximately 125lbs/57kg, depending on options selected
Performance
- The TTI filter cart can filter oils up to ISO VG 680 at 40C /10 4 F

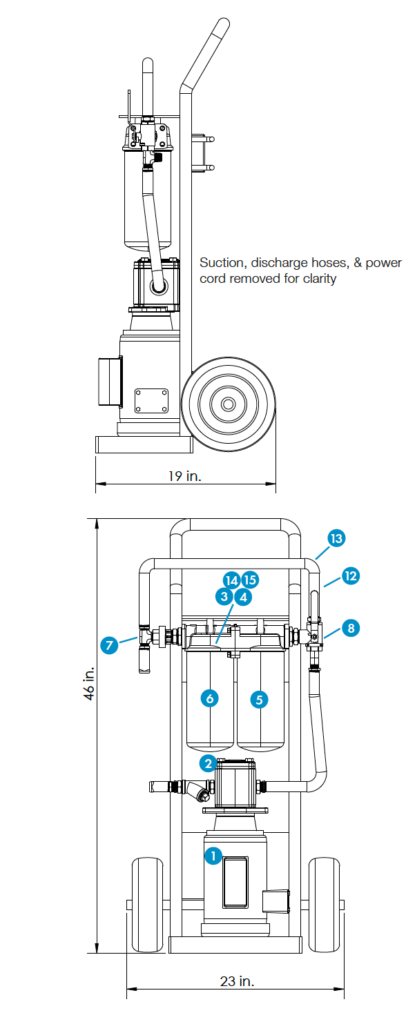

Overall Dimensions
- 19”L x 23”W x 46”H
By the Numbers:
| Item No. | Description | Qty. |
| 1 | Motor | 1 |
2 | Gear Pump | 1 |
3 | Filter Head | 2 |
4 | Pressure Gauge | 1 |
5 | Filter Element 1 | 1 |
6 | Filter Element 2 | 1 |
7 | Post-Filter Sample Value | 1 |
8 | Pre-Filter Sample Valve | 1 |
9 | 25’ Cord | 1 |
10 | Suction Hose, 40” | 1 |
11 | Pressure Hose, 40” | 1 |
12 | Manual Filter Bypass Valve | 1 |
13 | Filter Bypass | 1 |
14 | Pump Relief-65psi | 1 |
15 | Filter Change Indicator | 1 |
