MF Series
Modular Spin-On Filter Heads
Spin-on filter heads are mounted directly in-line. Filters are easy to replace without special equipment or tooling, reducing downtime. With the use of multiple filter elements, it is possible to lengthen the time periods between element servicing. Multiple-element spin-on filters are designed to filter out even the finest contaminants while creating greater flow capacities and longer service life.
Specifications
- Flows Up To: 120 GPM (Return) 50 GPM (Suction)
- Port Sizes: 1 1/2″ NPTF w/ 2” 4-Bolt Flange; 1 7/8″ – 12 UN (SAE – 24)
- Pressure: 200 PSI Max. Operating
- Temperature: Up to +200° F Operating
- Applications: Petroleum-based fluids
- Features: Multiple modular heads bolted together; inlet flow is equally divided among all elements (parallel flow) providing greater flow capacities and longer service life
Benefits
- protect pumps, valves or an entire hydraulic circuit from contamination
- Easy to install and use
Diagrams and Dimensions

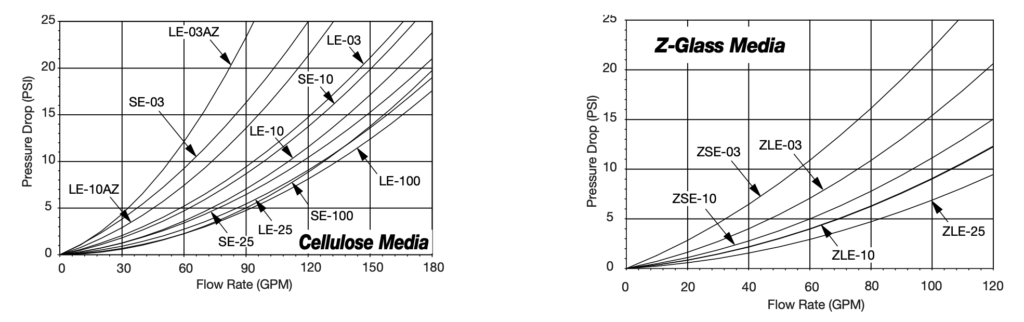

Performance Chart
Average Pressure Drop Through Clean Filter Assembly With 150 SUS Oil At 105° F.

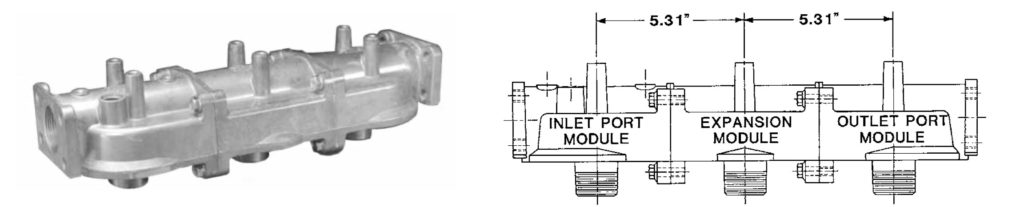

3 Element Spin-on Filter Head Assembly

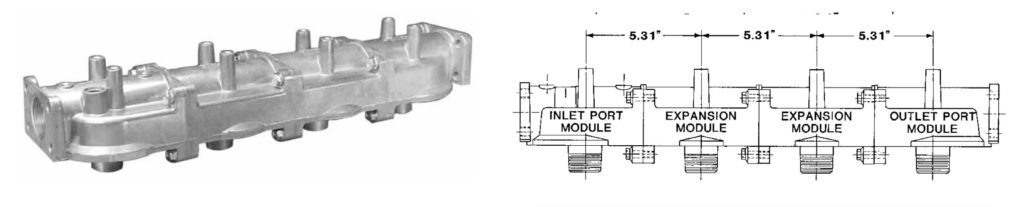

4 Element Spin-on Filter Head Assembly

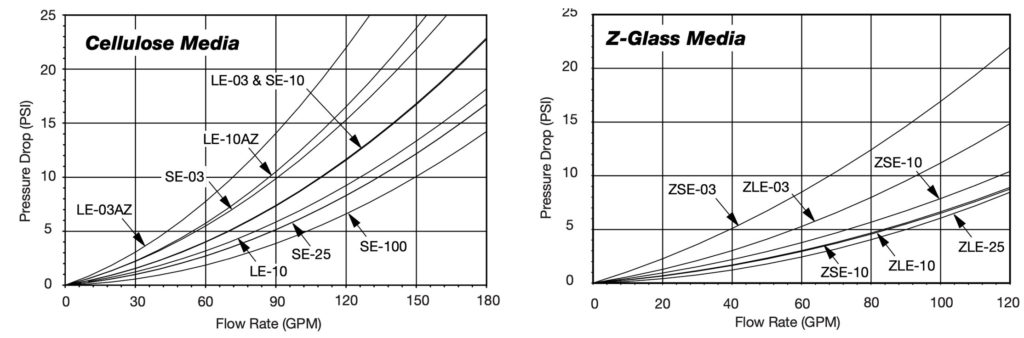

3 & 4 Element Data
Average Pressure Drop Through Clean Filter Assembly With 150 SUS Oil At 105° F.
NOTES:
Flow data for a MF-Series 4-element filter head is identical to the 3-element filter above. MF-Series filter heads with 4 or more elements will not significantly reduce pressure drop or allow greater flow through the assembly. The MF Series will lengthen the time periods between element servicing.
Multiple unit head assemblies may require additional mounting support for your application.
Zinga Filter Media Types
Z-Glass Media
Multi-Layered, non-woven glass media that provides the highest levels of depth filtration efficiency and capacity. Higher capacity means longer service life. Coupled with a steel support mesh, Z-Glass can withstand higher differential pressures.
Cellulose Media
Traditional paper based media that provides a nominal level of depth filtration and capacity. Used with petroleum-based fluids only. Some grades of cellulose include a layered glass fiber substrate to provide more efficiency.
AquaZorb Media
Water absorbing cellulose based media designed specifically to absorb and retain free water from petroleum-based fluids. Commonly used in offline systems, AquaZorb will operate until it is fully saturated and ultimately curtail flow through the media. A system by-pass valve and service gauge is recommended when using AquaZorb.
Stainless Steel Mesh
Woven in a variety of precision patterns, stainless steel mesh provides a basic surface type filtration with very low differential pressure. Applications include pump protection and “last chance” valve protection. Stainless steel mesh can be serviced by ultrasonic cleaning. (30: 560µ, 60: 280µ, 100: 141µ, 200:75µ, 200×1400: 10µ)
Compatible Spin-on Filters
SE & LE Spin-On Filter Elements
for use with SF, DF, MF, MFT, ZDF series filter heads
ZSE & ZLE Z-Glass Media Spin-On Filter Elements
for use with SF, DC, MF, MFT, ZDF series filter heads
