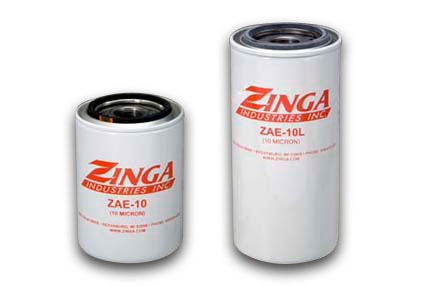

ZAE Series
Synthetic Spin-On Hydraulic Filter Elements: 1-12 Thread, High Capacity
FOR USE WITH ZAF05 ZAF07 ZAF10 SERIES FILTER HEADS
The ZAE Series spin-on filter elements combine robust synthetic media with a standard 1-12 mounting thread to deliver superior filtration efficiency and extended service life. With a 3.8 inch diameter and a 250 PSI maximum operating pressure, these elements are designed for precise hydraulic applications requiring reliable contamination control. Compatible with ZAF filter heads, the ZAE Series is ideal for demanding conditions where high performance is a must.
Specifications
- Diameter: 3.8”
- Mounting Thread: 1” – 12 UN
- Pressure: 250 PSI Max. Operating
- ∆Pmax: 80 PSID
- Temperature: Up to +250°F Operating
- Applications: Petroleum-based fluids
Applications
- Suction filters
- On the return circuit, for mounting on the line or on the tank cover
- In-line for low and medium pressure applications
- mowers
- tow trucks
- truck-mounted aerial lifts and cranes
- pavers
- compactors
- wood splitters and chippers
- trenchers
- utility terrain vehicles (UTVs).
Specifications
| Part Number | Particle Size | Nominal Rating | Absolute Rating | Can Color / Imprint | Overall Height |
| ZAE03 | 3 Micron | ß<4µ(c) = 2 | ß5µ(c) = 75 ß6µ(c) = 200 | White / Green | 5.8” |
| ZAE10 | 10 Micron | ß<4µ(c) = 2 | ß10µ(c) = 75 ß14µ(c) = 200 | White / Red | 5.8” |
| ZAE10L | 10 Micron | ß6µ(c) = 2 | ß11µ(c) = 75 ß15µ(c) = 200 | White / Red | 8.5” |
Application Data
- Reference:
- ßXµ(c) = 2 represents 50% efficiency at Particle Size (Nominal Rating)
- ßXµ(c) = 75 represents 98.7% efficiency at Particle Size (Absolute Rating)
- ßXµ(c) = 200 represents 99.5% efficiency at Particle Size
- Z-Glass Media
- Buna-N gasket standard. Fluorocarbon gasket optional, consult factory.
- Caution: Do not use ZAE Series filter elements on internal combustion engines.
Zinga ProTect Shroud Harsh Environment Protection
FG03Q combines filter gasket with a protective shroud top. (Please Order Separately)
Zinga Filter Media Types
Z-Glass Media
Multi-Layered, non-woven glass media that provides the highest levels of depth filtration efficiency and capacity. Higher capacity means longer service life. Coupled with a steel support mesh, Z-Glass can withstand higher differential pressures.
Cellulose Media
Traditional paper based media that provides a nominal level of depth filtration and capacity. Used with petroleum-based fluids only. Some grades of cellulose include a layered glass fiber substrate to provide more efficiency.
AquaZorb Media
Water absorbing cellulose based media designed specifically to absorb and retain free water from petroleum-based fluids. Commonly used in offline systems, AquaZorb will operate until it is fully saturated and ultimately curtail flow through the media. A system by-pass valve and service gauge is recommended when using AquaZorb.
Stainless Steel Mesh
Woven in a variety of precision patterns, stainless steel mesh provides a basic surface type filtration with very low differential pressure. Applications include pump protection and “last chance” valve protection. Stainless steel mesh can be serviced by ultrasonic cleaning. (30: 560µ, 60: 280µ, 100: 141µ, 200:75µ, 200×1400: 10µ)
Compatible Spin-on Filters
ZAF05 Series Spin-On Filter Heads
Flows Up To: 22 GPM (Return) 5 GPM (Suction)
Port Sizes: 1/2” NPTF; 3/4”-16 UN (SAE-8)
Pressure: 250 PSI Max.
Temperature: Up to +250°F
Applications: Petroleum-based fluids; consult factory for synthetic fluids
ZAF07 Series Spin-On Filter Heads
Flows Up To: 25 GPM (Return) 9 GPM (Suction)
Port Sizes: 3/4” NPTF; 1-1/16”-12 UN (SAE-12)
Pressure: 250 PSI Max.
Temperature: Up to +250°F
Applications: Petroleum-based fluids; consult factory for synthetic fluids
ZAF10 Series Spin-On Filter Heads
Flows Up To: 32 GPM (Return) 14 GPM (Suction)
Port Sizes: 1” NPTF; 1 5/16”-12 UN (SAE-16)
Pressure: 250 PSI Max.
Temperature: Up to +250°F
Applications: Petroleum-based fluids; consult factory for synthetic fluids
