BTF Series

Hose Bead Tank Filter and Weld Collar: Secure Mounting, High Flow

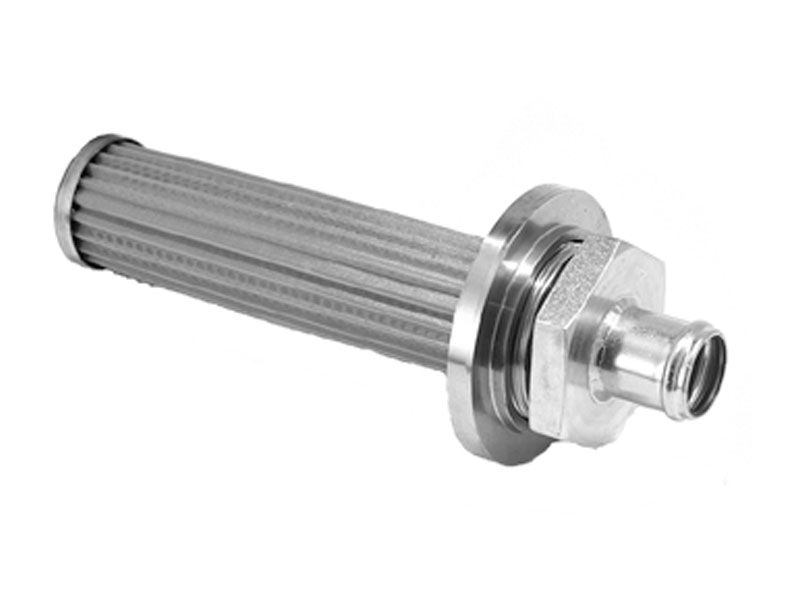

The BTF Series hose bead tank filters feature a unique weld collar design for secure mounting, combined with a hose bead configuration that simplifies installation. Supporting SAE-20 and SAE-24 port sizes, these filters cater to high flow capacities, making them ideal for new hydraulic installations and custom builds. The BTF Series ensures dependable filtration and reliable system protection, all while facilitating easy assembly in complex hydraulic setups.

REQUEST A QUOTE

Hose bead tank filter with weld collar, supports high flow with SAE-20 & SAE-24 port sizes for secure and easy mounting

Features

Port Sizes: SAE-20 & SAE-24
Operating Temperature: Up to 250°FT
Mount: External Reducer Bushing Mount

Benefits

Easy to install and use
protect hydraulic pumps and control systems from solid contaminants, minimizing pressure loss for hydraulic pumps

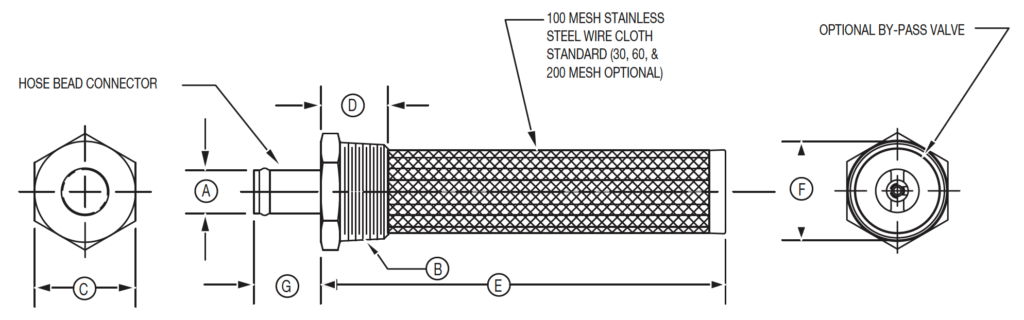

Specifications and Dimensions

Hose Bead to Male Straight-Thread Fitting O-Ring and Mounting Weld Collar

Model	(A)	(B) Thread	(C) Hex	(E) Length	(F) Dia.	(G) Length	Rated Flow 5 Ft/Sec
BTF0716XX*	.8″	1 5/8”-12UN-2A	1.88″	6.4″	1.5″	1.6″	5 GPM
BTF1018XX*	1.0″	1 7/8”-12UN-2A	2.13″	6.4″	1.7″	1.7″	10 GPM
BTF1225XX*	1.3″	2 1/2”-12UN-2A	2.75″	8.4″	2.7″	1.9″	16 GPM

*Additional information required to place an order. Contact us for assistance.

Weld Collar

Part Number	(B) Thread	O.D.
WC0716	1 5/8″-12UN-2B	2.75″
WC1018	1 7/8″-12UN-2B	3.06″
WC1225	2 1/2″-12UN-2B	3.88″

Weld collar ordered Separately From Filter

Hose Bead-to-Pipe Thread Seal

Model	(A)	(B) Thread	(C) Hex	(D) Length	(E) Length	(F) Dia.	(G) Length	Rated Flow5 Ft/Sec
BTF0712XX*	.8″	1 1/4″ NPTF	1.75″	1.2″	7.0″	1.5″	1.2″	5 GPM
BTF1015XX*	1.0″	1 1/2″ NPTF	2.00″	1.2″	7.0″	1.7″	1.2″	10 GPM
BTF1220XX*	1.3″	2″ NPTF	2.50″	1.3″	9.1″	2.7″	1.3″	16 GPM
