TFS Series

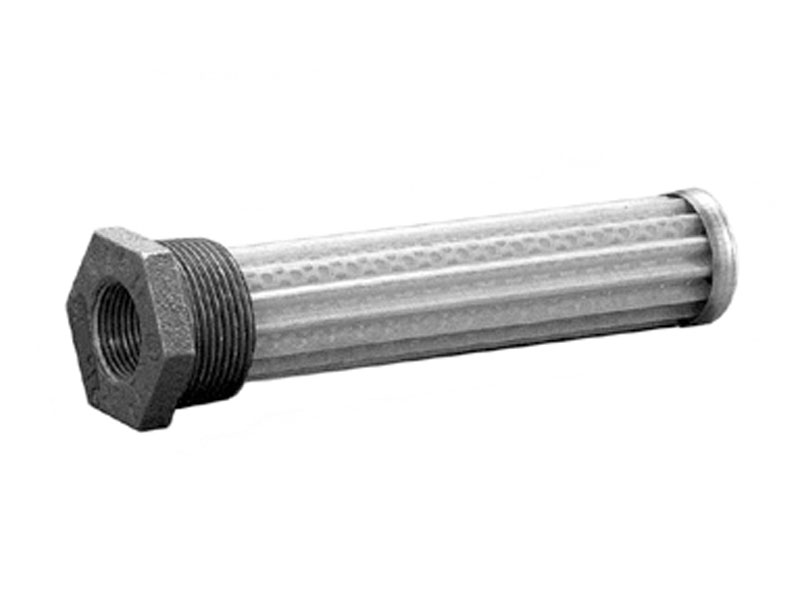

Externally Mounted Steel Bushing Tank Strainers: 100 Mesh Filtration
The TFS Series externally mounted tank strainers offer robust protection for hydraulic systems with easy maintenance access. Constructed with durable steel bushings and featuring 100 mesh stainless steel filtration media, these strainers effectively prevent solid contaminants from reaching critical system components. With NPT ports ranging from 1/2″ to 3″ and optional bypass configurations, the TFS Series is perfect for retrofits and maintenance-intensive environments requiring reliable and efficient filtration.
Features
- Sizes: 1/2” Through 3” NPT
- Media: 100 Mesh Standard
- Optional By-pass: 3 PSI (6” Hg) or 5 PSI (10” Hg)
- Operating Temperature: Up to 250°F
Benefits
- Easy to install and use
- protect hydraulic pumps and control systems from solid contaminants, minimizing pressure loss for hydraulic pumps
Specifications and Dimensions
| Model | (A) Outlet Port | (B) Hex Size | (C) Male Thread | (D) Overall Length | (E) Cover Dia. | Rated Flow@ 5 Ft/Sec |
| TFS0510XX* | 1/2″ NPT | 1.38″ | 1″ NPT | 5.3″ | 1.1″ | 5 GPM |
| TFS0712XX* | 3/4″ NPT | 1.80″ | 1 1/4″ NPT | 6.9″ | 1.5″ | 8 GPM |
| TFS1015XX* | 1″ NPT | 2.23″ | 1 1/2″ NPT | 7.1″ | 1.7″ | 14 GPM |
| TFS1220XX* | 1 1/4″ NPT | 2.58″ | 2″ NPT | 9.1″ | 2.2″ | 23 GPM |
| TFS1540XX* | 1 1/2″ NPT | 2.70″ | 4″ NPT | 9.2″ | 4.2″ | 32 GPM |
| TFS2030XX* | 2″ NPT | 3.30″ | 3″ NPT | 9.4″ | 3.2″ | 53 GPM |
| TFS2540XX* | 2 1/2″ NPT | 3.83″ | 4″ NPT | 9.1″ | 4.2″ | 75 GPM |
| TFS3040XX* | 3″ NPT | 4.65″ | 4″ NPT | 9.4″ | 4.2″ | 116 GPM |
All strainers are rated at 5 ft/sec with a pressure drop of under 1” Hg (1/2 PSI) with 150 SUS oil.
*Additional information required to place an order. Contact factory for assistance.
