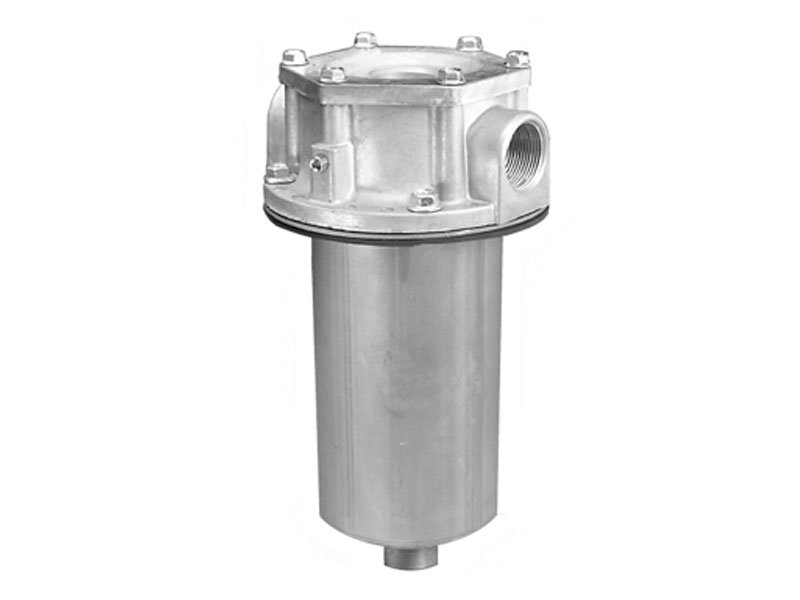

SRF Series
Modular Multi-Element Hydraulic Return Filter: High Dirt-Holding Capacity
The SRF Series modular tank mounted return filters feature high dirt-holding capacity and customizable single, dual, or triple element configurations. Designed for hydraulic systems that demand longer service intervals and maximum filtration performance, these filters deliver up to 83 GPM flow. The SRF Series offers industry-standard mounting for easy retrofits, making it the ideal solution for tough applications with high contamination loads.
Specifications
- Flows Up To: 83 GPM (Return) 28 GPM (Suction)
- Port Sizes: 1 ¼” NPTF, 1 ½” NPTF, SAE-20, and SAE-24
- Pressure: 100 PSI Max Operating
- Temperature: Up to 250°F Operating
- Application: Petroleum-based fluids; consult factory for synthetic fluids
Benefits
- Protects hydraulic system
- Easy to install and use
- Helps keep your system in compliance with ISO 4406 standards
- Highest levels of dirt-holding capacity
Performance Chart
Average Pressure Drop Through Clean Filter Assembly With 150 SUS Oil At 105 ̊ F
Design Features
- Radial seal grommet used in SRE Series filter elements.
- Filter housing mounting bolt pattern matches Zinga RF, TR, and TS series as well as Schroeder ST, RT, and LRT series housings.
- SRF series housings are fully compatible with Schroeder K series elements.
Diagrams and Dimensions
5 3/8″ DIA. MOUNTING HOLE REQUIRED
Bottom Flow Filter Application
Bottom Port Options
Zinga Filter Media Types
Z-Glass Media
Multi-Layered, non-woven glass media that provides the highest levels of depth filtration efficiency and capacity. Higher capacity means longer service life. Coupled with a steel support mesh, Z-Glass can withstand higher differential pressures.
Cellulose Media
Traditional paper based media that provides a nominal level of depth filtration and capacity. Used with petroleum-based fluids only. Some grades of cellulose include a layered glass fiber substrate to provide more efficiency.
AquaZorb Media
Water absorbing cellulose based media designed specifically to absorb and retain free water from petroleum-based fluids. Commonly used in offline systems, AquaZorb will operate until it is fully saturated and ultimately curtail flow through the media. A system by-pass valve and service gauge is recommended when using AquaZorb.
Stainless Steel Mesh
Woven in a variety of precision patterns, stainless steel mesh provides a basic surface type filtration with very low differential pressure. Applications include pump protection and “last chance” valve protection. Stainless steel mesh can be serviced by ultrasonic cleaning. (30: 560µ, 60: 280µ, 100: 141µ, 200:75µ, 200×1400: 10µ)
Compatible Filter Elements
SRE & ZSRE Series Filter Elements
for Zinga SRF & TS Housings, or as direct interchange for Schroeder “K” series elements
