DP06 Series
Cartridge-Style Single Wire DC Indicator
Zinga cartridge-style visual electrical indicators can take up to 3000 PSI max Operating Pressure (6000 PSI for 80 PSID units)and temperatures up to 200˚F. Contact our team with any questions about the best option for your application.
Features
- Cartridge-Style Single Wire DC Indicator
- 200mA @ 36VDC
- Momentary – Normally Open Circuit
- 3000 PSI max Operating Pressure (6000 PSI for 80 PSID units)
- Temperatures up to 200˚F
- Automatic Resetting
- Factory Installed
- Available as kit for field replacement.
- Ground through Filter Head to Chassis (In Oil)
Benefits
- Provides for effective management of filters
- Engineered to show the condition of filter elements
- Easy to install and use

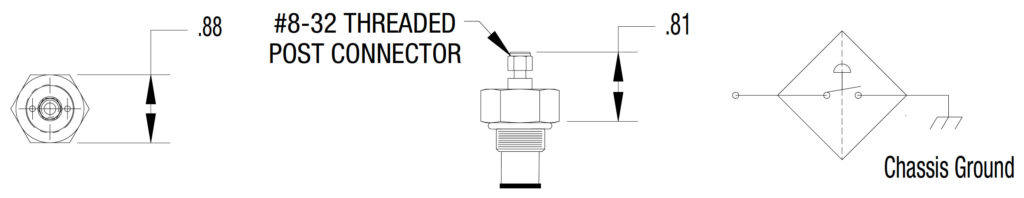

Diagram and Dimensions

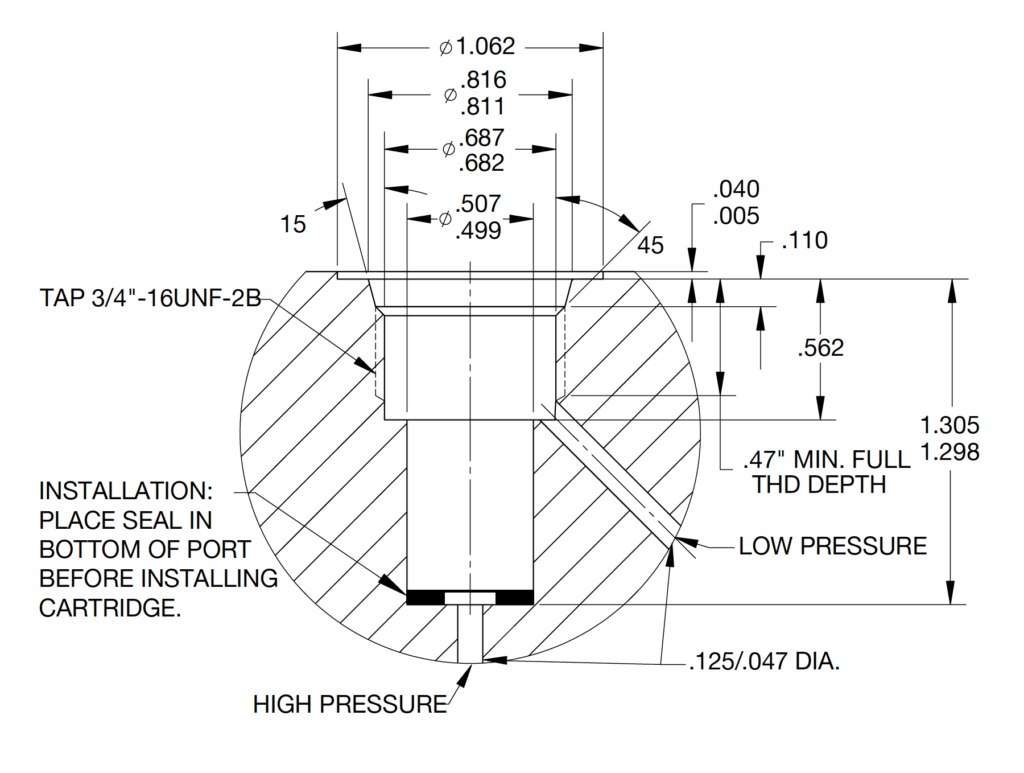

INDICATOR PORT DETAIL

NOTE: TOP PORTION OF INDICATOR PORT PARALLEL TO SAE-8
