RCB Series

Reservoir Cover

The Zinga RCB series reservoir cover is designed for flows up to 96 GPM (Return) 32 GPM (Suction) and can handle filter operating pressures up to 100 PSI maximum.


  • Integral Filter Port Sizes:  7/8” – 14 UN (SAE-10) to 1 7/8″ – 12 UN (SAE – 24)
  • Integral Filler Breathers:  Zinga SFB, FB or FTB Series
  • Suction/Return Port:  3/8” to 1 1/4” NPTF
  • Filter Operating Pressure:  100 PSI Maximum
  • Temperature:  Up to +250°F


  • Flows Up To:  96 GPM (Return) 32 GPM (Suction)
  • Easy to install and use

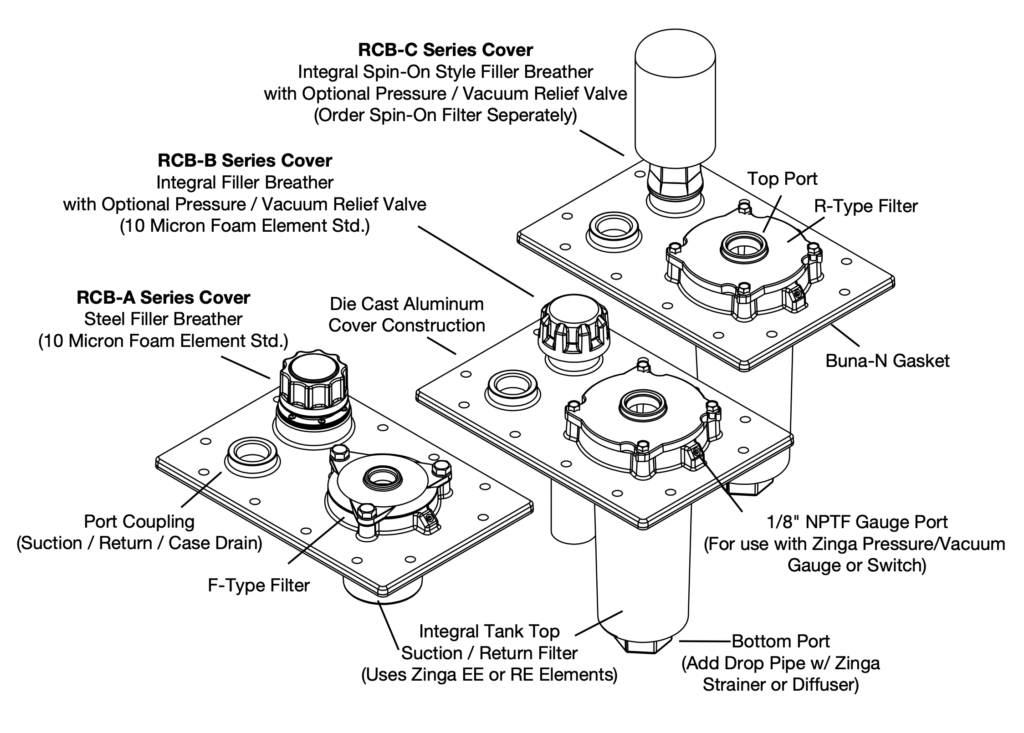

Dimensions and Diagram
